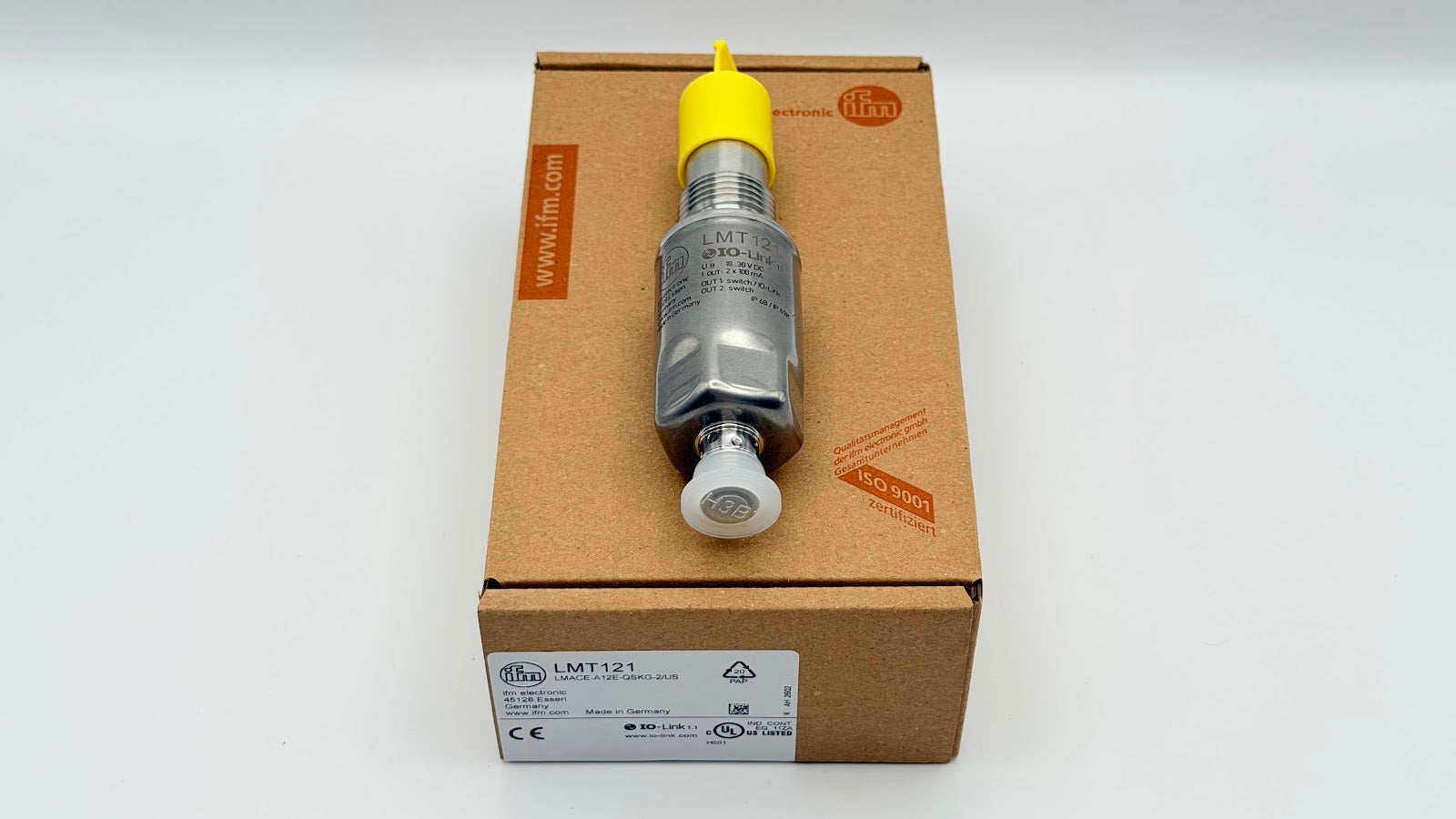

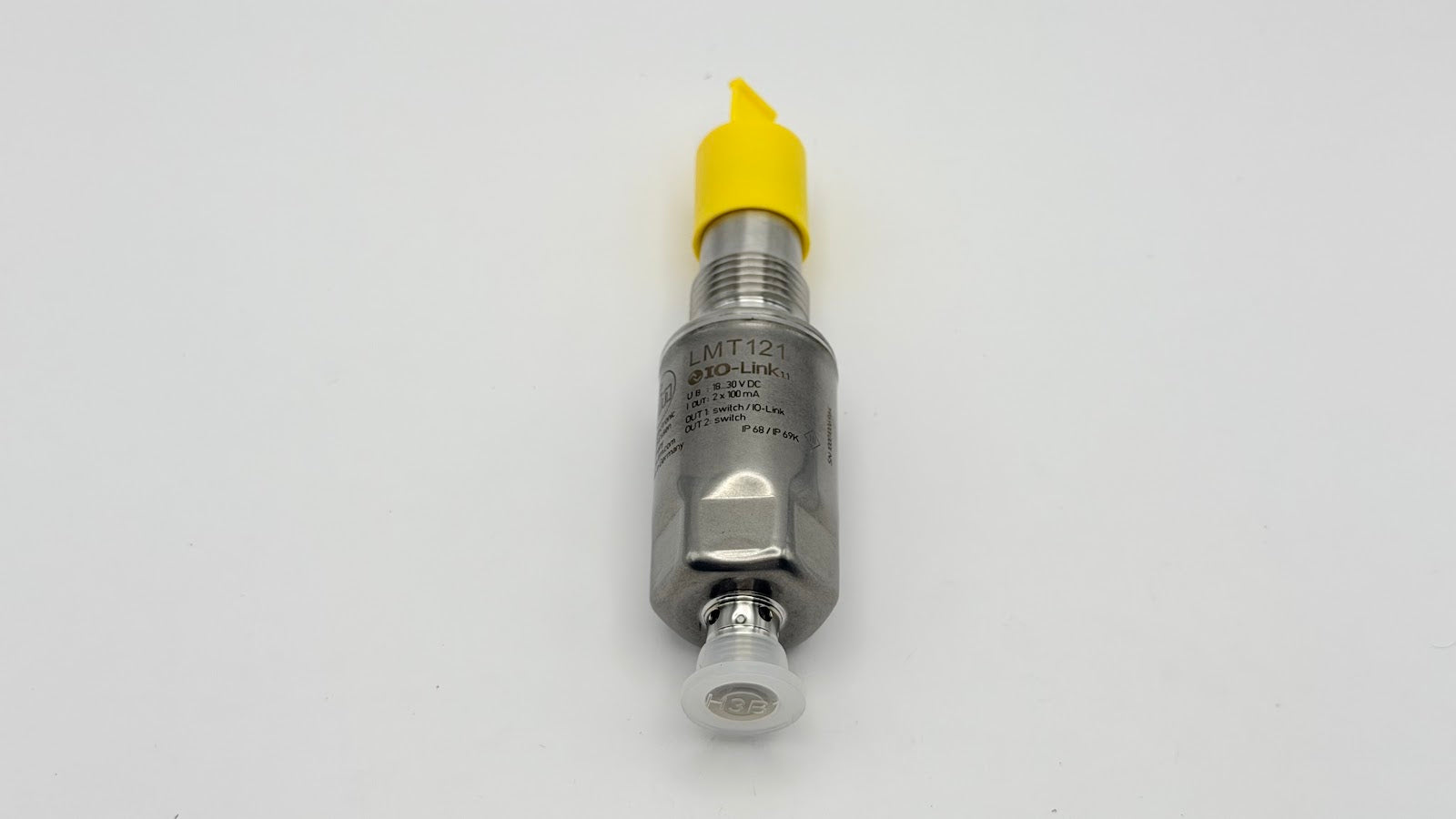

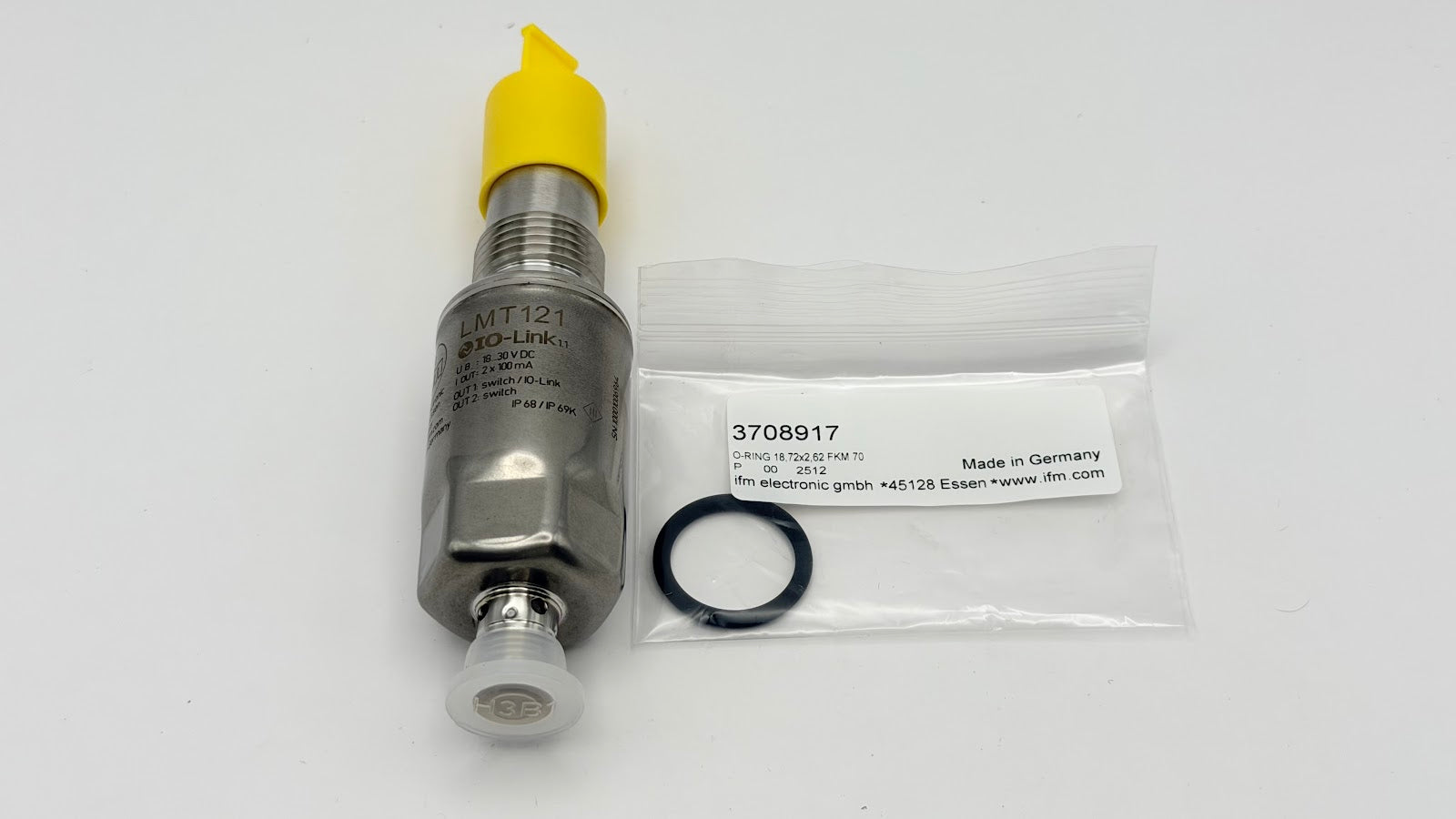

IFM LMT121 Point Level Sensor — hygienic G1/2 point level sensor, 11 mm probe, IO-Link, foam/deposit suppression. Capacitive point level, 2 PNP/NPN outputs, G1/2 sealing cone, 11 mm probe, IO-Link, 18...30 V DC, IP68/IP69K, medium -40...100 °C.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: LMT121
Also known as: IFM LMT121 level sensor / level switch.
LMT121 Applications
The IFM LMT121 is used for reliable point level control in tanks and containers in the food, beverage and hygienic process industries. It is suited for overflow prevention, leakage detection and run-dry protection with liquid, viscous and powder media. Parameterisation of the two switching outputs allows different media to be distinguished and reliably suppresses deposits and foam, while IO-Link provides user-friendly setup, diagnostics and the hygienic G1/2 sealing-cone design meets cleanability requirements.
LMT121 Specifications
Brand
IFM
Product Type
Sensor for point level detection
IFM Type Code
LMACE-A12E-QSKG-2/US
Measuring Principle
Capacitive
Outputs
2 x digital (PNP/NPN), N/O-N/C parameterisable + IO-Link
What measuring principle does the IFM LMT121 use and for which media?
The LMT121 is a capacitive point level sensor for liquids, pasty media and powder.
What outputs does the IFM LMT121 provide?
The LMT121 has a PNP/NPN electrical design with 2 outputs and a parameterisable normally open / normally closed function, providing switching signal and IO-Link.
Does the IFM LMT121 support IO-Link?
Yes; the LMT121 supports IO-Link revision 1.1, COM2 (38.4 kBaud) per IEC 61131-9, with SIO mode, a minimum cycle time of 2.3 ms, and 1 analogue plus 2 binary process data channels.
What is the operating voltage and response time of the IFM LMT121?
The LMT121 operates on 18...30 V DC with a current consumption of < 50 mA and a response time of < 0.5 s.
What are the temperature and pressure ratings of the IFM LMT121?
The LMT121 has an ambient temperature range of -40...85 C, a medium temperature range of -40...100 C (short-term -40...150 C for 1 hour), and a pressure rating of 40 bar / 4 MPa.
What are the wetted materials of the IFM LMT121?
The LMT121 wetted parts are PEEK, with overall materials of stainless steel (316L/1.4404), PEEK, PEI and FKM.
What is the process connection of the IFM LMT121?
The LMT121 uses a G 1/2 sealing cone threaded process connection with an 11 mm probe length.
What IP rating and indicators does the IFM LMT121 have?
The LMT121 is rated IP 68 and IP 69K with a yellow switching status LED and a green operating status LED; connection is via M12 A-coded connector with gold-plated contacts.
Electrical Connection: 1 x M12, coding A, 4 contacts, gold-plated
Dimensions: Ø 30 mm / L = 113 mm
Weight: 211 g
Shock Resistance: 50 g (11 ms) per DIN EN 60068-2-27
Vibration Resistance: 20 g (10...2000 Hz) per DIN EN 60068-2-6
MTTF: 223 years
UL Approval Number: H001
Protection Class III: Yes
Reverse Polarity Protection: Yes
Factory Setting: Media with low water content
Media: Liquid, viscous media, powder
Pack Quantity: 1 pcs
List Price (USD): $342.50
