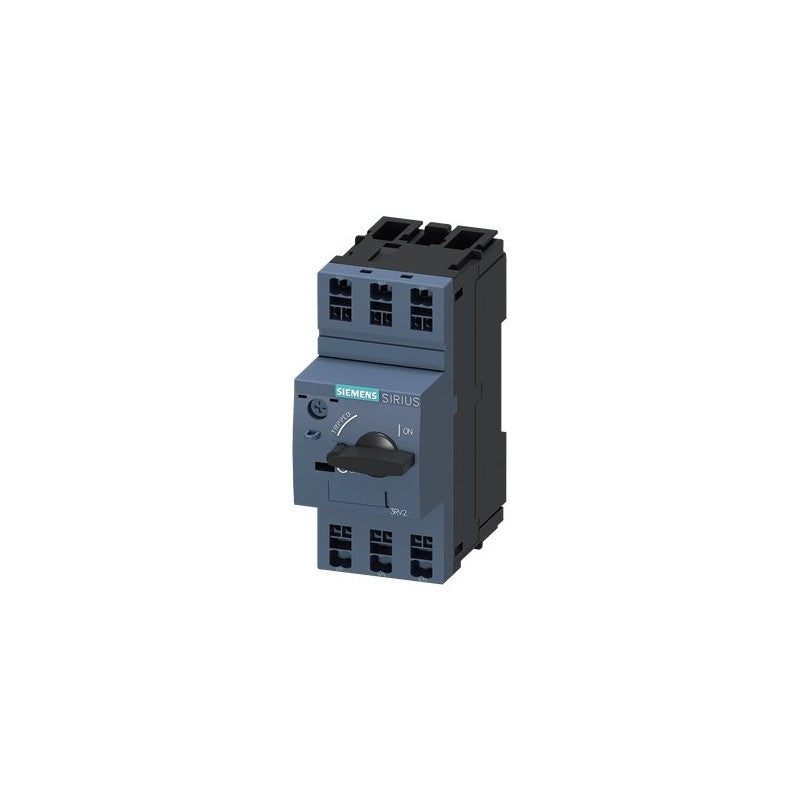

Siemens Motor Protection 3RV2011-0HA20

Siemens Motor Protection 3RV2011-0HA20

AED 189.64
AED 189.64
Sale Sold out
Shipping calculated at checkout.

Siemens, Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.55...0.8 A N-release 10 A Spring-type terminal Standard switching capacity
View full details

Specifications

  • Brand: Siemens
  • Current Rating: 0.55 ? 0.8 A
  • Range: SIRIUS 3RV
  • Motor Protection Component: Circuit Breaker
  • Supply Voltage: 690 V ac
  • Series: 3RV2
  • Overall Length: 106mm
  • Overall Width: 45mm
  • Overall Depth: 97mm
  • Minimum Operating Temperature: -20°C
  • Voltage Rating: 690 V
  • Maximum Operating Temperature: +60°C
  • Terminal Type: Cage Clamp
  • Better World Claim: Alternative materials, Extended product life, Saves energy
  • Breaking Capacity: 100 kA
  • Number of Poles: 3
  • Better World Product (Find out more): Find out more
  • Size: S00
  • Country of Origin: Germany
