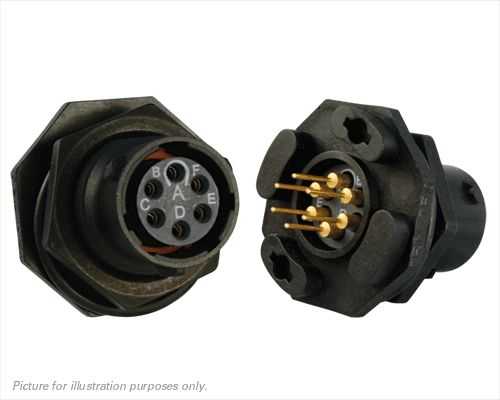

UTS710D6S - Eaton Standard Female Circular Connector, 6-Contact (Panel-Mount)

UTS710D6S - Eaton Standard Female Circular Connector, 6-Contact (Panel-Mount)

AED 70.00
AED 70.00
Sale Sold out
Shipping calculated at checkout.

The UTS710D6S is a highly durable industrial circular connector from Eaton, part of the UTS series. This Standard Plug features 6 Female contacts, a Straight body orientation and a Solder termination method. Rated IP68 / IP69K for demanding environments and built with a Thermoplastic housing, it delivers a secure, vibration-resistant connection via Bayonet mating. Configured for Panel-Mount installation, it delivers reliable signal and power transmission for factory automation, sensor integration, and industrial networking applications.
View full details

Specifications

  • Brand: Eaton
  • Mounting Type: Panel-Mount
  • Plug/Socket: Plug
  • Number Of Contacts: 6
  • Connector Size: Standard
  • Termination Method: Solder
  • Body Orientation: Straight
  • Contact Gender: Female
  • IP Rating: IP68 / IP69K
  • Series: UTS
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 105 °C
  • Mating Type: Bayonet
  • Current Rating: 7000 mA
  • Housing Material: Thermoplastic
  • Voltage Rating: 600.00 V
  • Shell Size: 10
  • Contact Material: Copper
  • Contact Plating: Gold
  • Strain Relief: No
