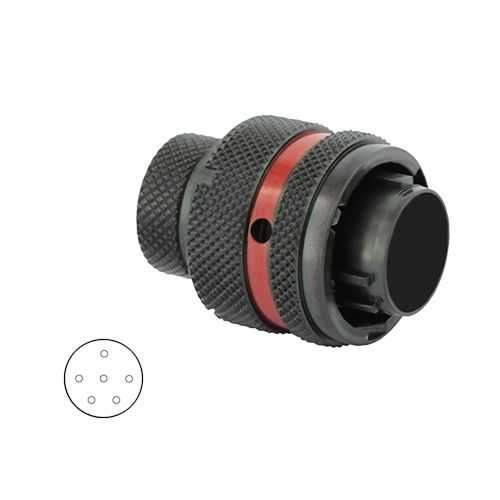

8STA61098PN - Eaton Standard Male Circular Connector, 6-Contact (Cable-Mount)

8STA61098PN - Eaton Standard Male Circular Connector, 6-Contact (Cable-Mount)

AED 360.00
AED 360.00
Sale Sold out
Shipping calculated at checkout.

The 8STA61098PN is a highly durable industrial circular connector from Eaton, part of the 8STA series. This Standard Plug features 6 Male contacts, a Straight body orientation and a Crimp / PC-Tail / Solder-Cup termination method. Rated IP67 for demanding environments and built with a Aluminium housing, it delivers a secure, vibration-resistant connection via Bayonet mating. Configured for Cable-Mount installation, it delivers reliable signal and power transmission for factory automation, sensor integration, and industrial networking applications.
View full details

Specifications

  • Brand: Eaton
  • Mounting Type: Cable-Mount
  • Plug/Socket: Plug
  • Number Of Contacts: 6
  • Connector Size: Standard
  • Termination Method: Crimp / PC-Tail / Solder-Cup
  • Body Orientation: Straight
  • Contact Gender: Male
  • IP Rating: IP67
  • Series: 8STA
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: 175 °C
  • Mating Type: Bayonet
  • Current Rating: 7500 mA
  • Housing Material: Aluminium
  • Shell Size: 10
  • Contact Material: Copper
  • Contact Plating: Gold
