• Eaton - 20LCT
1 1

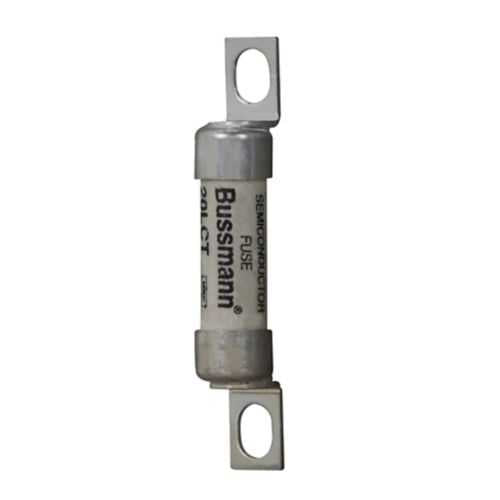

Eaton Tag Fuses 20LCT

Eaton Tag Fuses 20LCT

AED 19.94
AED 19.94
Sale Sold out
Shipping calculated at checkout.

Eaton, Bussmann series high speed British standard fuse, 20A, 240 VAC/150 VDC (IEC), 250 VAC/150 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 50 kA DC at 150 VDC
View full details

Specifications

  • Brand: Eaton
  • Current Rating: 20A
  • Fuse Size: LCT
  • Voltage Rating: 240 V ac, 150V dc
  • Fuse Standard: BS 88, IEC 269-4
  • Fixing Centres: 38mm
  • Application Category: aR
  • Tag Width: 6.4mm
  • Fuse Speed: FF
  • High Rupture Capacity: Yes
  • Overall Length: 47mm
  • Tag Type: Bolted
  • Body Diameter: 8.4mm
  • Body Length: 28mm
  • Tag Orientation: Offset
  • Body Width: 9mm
  • Body Height: 8.7mm
  • Fuse Dimensions: 8.4 x 28mm
