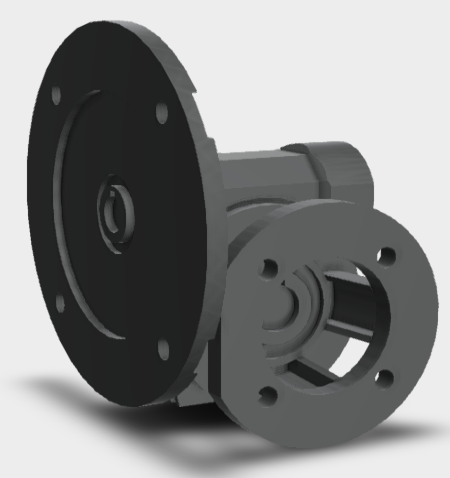

• Bonfiglioli - VF 150 F100 P100 B5 B6
1 1

Bonfiglioli VF 150 F100 P100 B5 B6 - Worm Gearboxes, 100 Ratio (50 Mm Shaft)

Bonfiglioli VF 150 F100 P100 B5 B6 - Worm Gearboxes, 100 Ratio (50 Mm Shaft)

SKUVF 150 F100 P100 B5 B6BrandBonfiglioli
AED 5,859.00
AED 5,859.00
Sale Sold out
Shipping calculated at checkout.

The VF 150 F100 P100 B5 B6 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 100 gear ratio and a maximum output torque of 2000 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 50 Mm shaft diameter, supports a maximum speed of 14 RPM, and is optimized for a 3 Hp/ 2.2 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
  • Brand: Bonfiglioli
  • Gear Ratio: 100
  • Gearbox Type: Worm Reduction
  • Maximum Output Torque: 2000 Nm
  • Shaft Diameter: 50 Mm
  • Power Rating: 3 Hp/ 2.2 Kw
  • Maximum Speed: 14 RPM
  • Input Speed: 1400
  • Housing Type: Cast Iron
  • Motor Frame Type: Iec Std Frame 100 B5
  • Motor Coupling: Direct
  • Lubrication: Without Oil
  • Mounting Version: Flange
  • Input Shaft Diameter: 28 Mm
  • Output Shaft Type (Alt): Hollow Output With Keyway
  • Efficiency: 65
  • Service Factor: 1
  • Warranty: 12 Months
