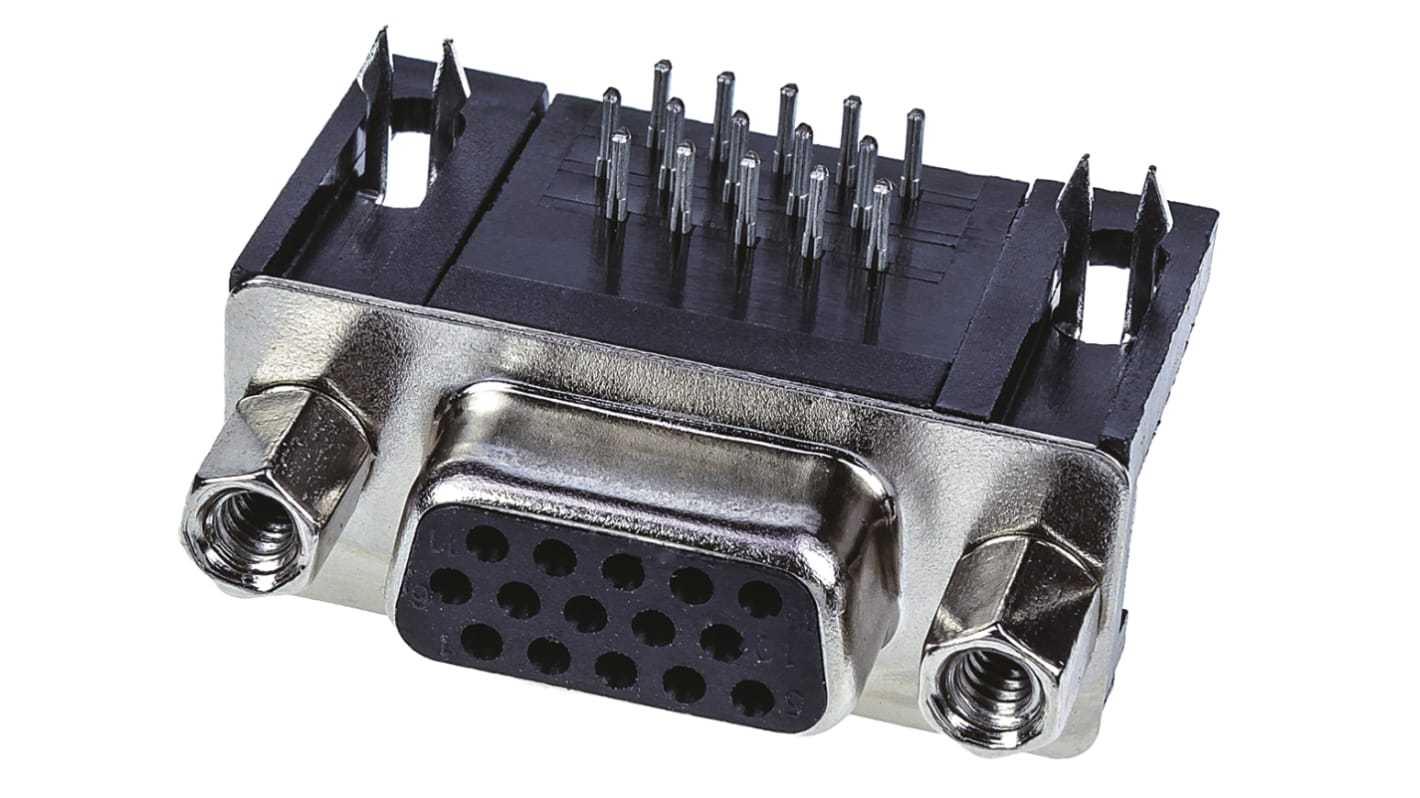

Harting D Sub Connectors 9561527613

Harting D Sub Connectors 9561527613

Regular price AED 13.19
Regular price Sale price AED 13.19
Sale Sold out
Shipping calculated at checkout.

Harting, D SUB HD FE RA 15P PL3_4-40 SCREW LOCK

View full details
SKU 9561527613 Brand Harting
  • Same-day dispatch

    Order before 2 PM UAE

  • Authorised distributor

    100% genuine parts

  • Volume pricing

    Bulk quotes within 24h

  • 7-day returns

    Sealed, unused items

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Harting
  • Number Of Contacts: 15
  • Gender: Female
  • Body Orientation: Right Angle
  • Mounting Type: Through Hole
  • Pitch: 2.29mm
  • D Connector Type: High Density D-Sub
  • Mounting Hardware: 4-40 UNC Female Screwlocks, Boardlocks
  • Termination Method: Solder
  • Current Rating: 2.0A
  • Housing Material: Steel
  • Length: 31.3mm
  • Width: 12.93mm
  • Depth: 21.4mm
  • Dimensions: 31.3 x 12.93 x 21.4mm
  • Contact Plating: Gold
  • Contact Material: Copper Alloy
  • Minimum Operating Temperature: -55.0°C
  • Maximum Operating Temperature: +105°C
  • Country of Origin: China
