• Pizzato - FP 2179
1 1

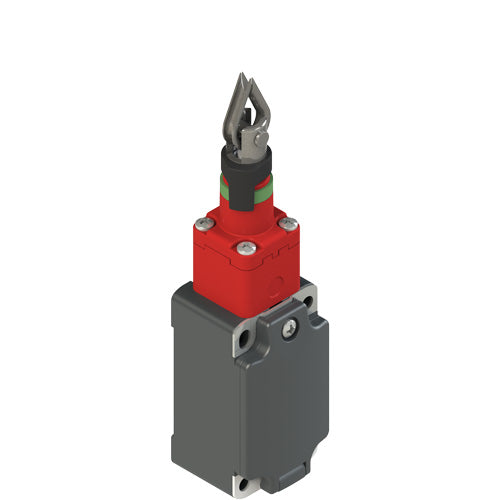

FP 2179 Pizzato Longitudinal head Technopolymer Slow Action Limit Switch 65mm*30mm

FP 2179 Pizzato Longitudinal head Technopolymer Slow Action Limit Switch 65mm*30mm

SKUFP 2179BrandPizzato
AED 88.00
AED 88.00
Sale Sold out
Shipping calculated at checkout.

The Pizzato FP 2179 is a reliable industrial limit switch designed with a longitudinal head actuator. Engineered for durability, it features a technopolymer housing to withstand demanding environments.

View full details
ParameterValue
Brand
Pizzato
IP Rating
IP67
Series
FD/FL/FP
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-25°C
Length
65mm
Width
30mm
Depth
40mm
Housing Material
Technopolymer
Action Type
Slow Action
Actuator Type
Longitudinal Head
ParameterValue
Contact Type
Silver contacts
Maximum AC Voltage
400V
Maximum Current
10A
Maximum DC Voltage
250V
Mechanical Life
100,000 cycles
Mounting Orientation
Longitudinal
Normal State Configuration
3NC
Output Type
Electromechanical
Pole and Throw Configuration
TPST
Standards Met
IEC 60947-5-1, EN 60947-5-1, IEC 60947-1, IEC 60204-1, EN ISO 14119, EN ISO 12100, IEC 60529, EN IEC 63000, UL 508, CSA C22.2 No. 14, GB/T14048.5, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
