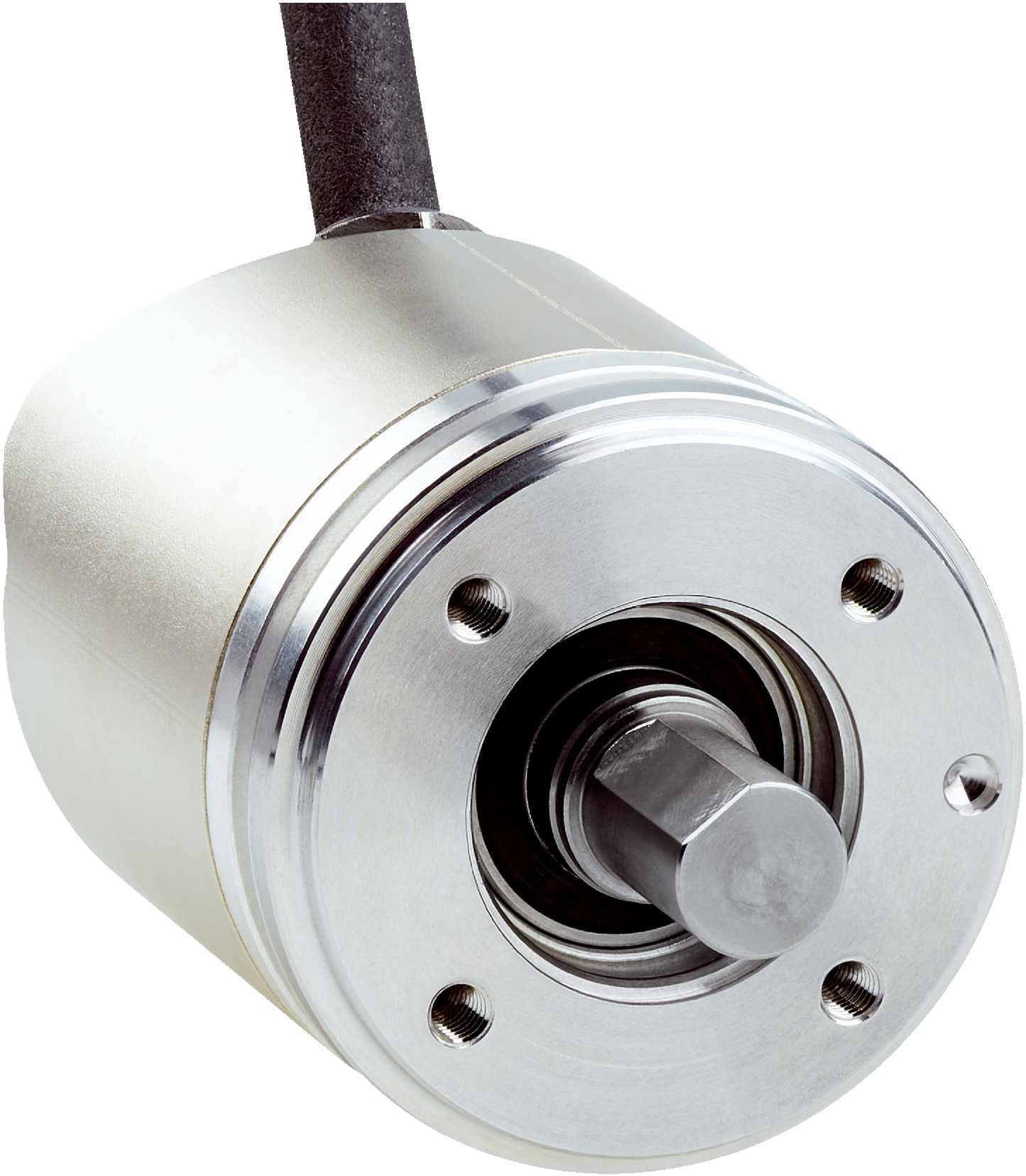

1084319 AHS36A - CANopen Motion Control Sensor, Solid shaft, Servo flange (16,384 (14 bit))

1084319 AHS36A - CANopen Motion Control Sensor, Solid shaft, Servo flange (16,384 (14 bit))

SKU1084319BrandSICK
AED 2,399.00
AED 2,399.00
Sale Sold out
Shipping calculated at checkout.

The 1084319 AHS36A is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a canopen interface, this sensor delivers an exact 16,384 (14 bit) resolution and supports ≤ 6,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 10 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
5 m
Series
AHS36A
Pulses Per Revolution
16,384 (14 bit)
Maximum Revolutions
≤ 6,000 min⁻¹
Shaft Type
With flat
Shaft Diameter
8 mm
Supply Voltage
10 ... 30 V
ParameterValue
Resolution
16,384 (14 bit)
Steps Per Revolution
16,384 (14 bit)
IP Rating
IP67
Interface
CANopen
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Cable, 5-wire, universal, 5 m
