• SICK - 1084301
1 1

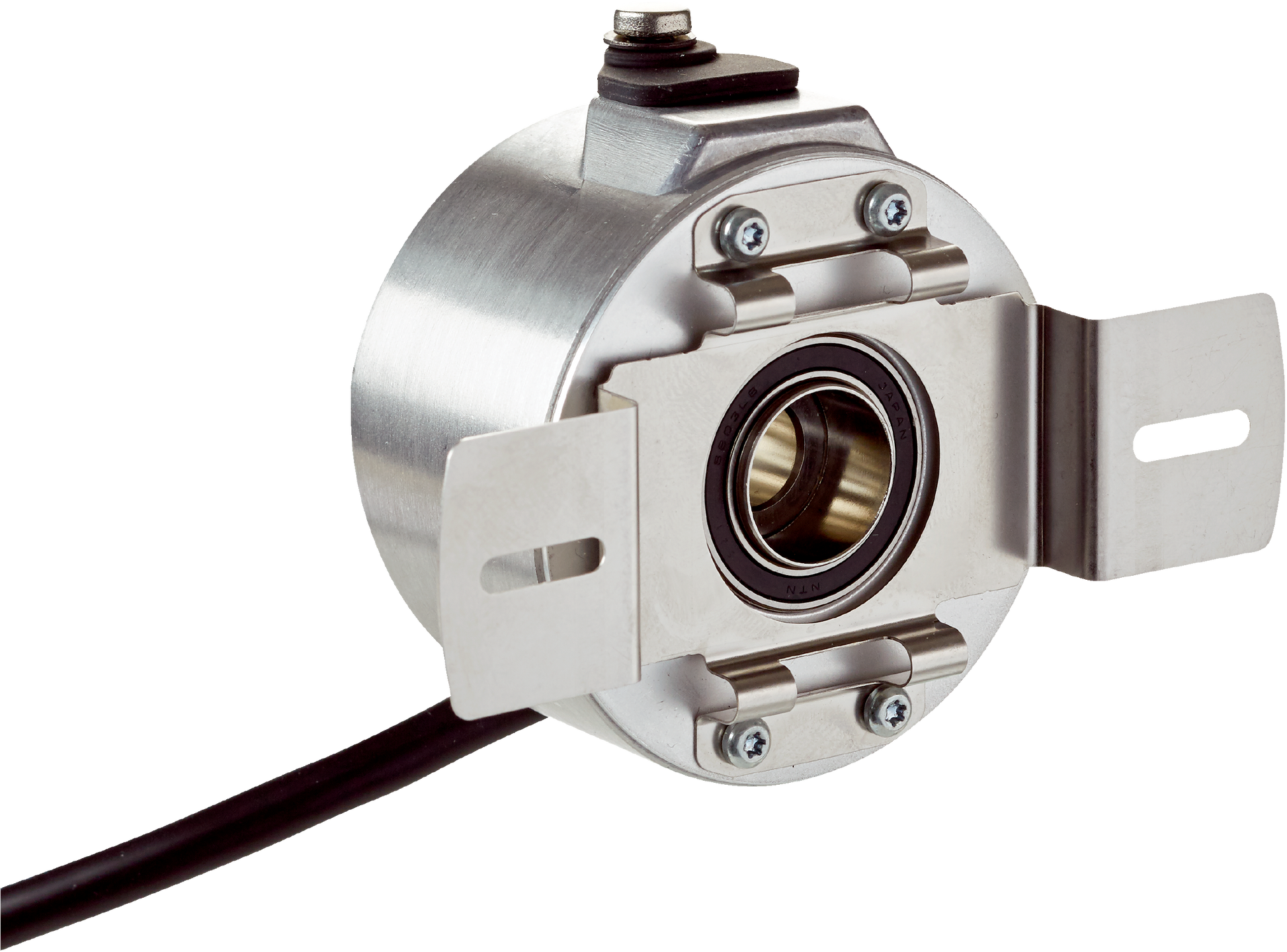

1084301 DUS60 - Incremental Motion Control Sensor, 2-point stator coupling, slot, hole diameter 63 mm – 83 mm (90°, electric/pulses per revolution)

1084301 DUS60 - Incremental Motion Control Sensor, 2-point stator coupling, slot, hole diameter 63 mm – 83 mm (90°, electric/pulses per revolution)

SKU1084301BrandSICK
AED 1,181.00
AED 1,181.00
Sale Sold out
Shipping calculated at checkout.

The 1084301 DUS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 90°, electric/pulses per revolution resolution and provides a reliable htl output signal type. Designed for secure and straightforward installation via a 2-point stator coupling, slot, hole diameter 63 mm – 83 mm and operating on a standard 4.75 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Cable Length
1.5 m
Series
DUS60
Maximum Revolutions
1,500 min⁻¹
Output Signal Type
HTL
Shaft Type
Through hollow shaft
Shaft Diameter
10 mmRear clamping
Supply Voltage
4.75 ... 30 V
Resolution
90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
90°, electric/pulses per revolution
IP Rating
IP65
Interface
Incremental
Minimum Operating Temperature
-30 °C
Maximum Operating Temperature
+90 °C
Mounting Type
2-Point Stator Coupling, Slot, Hole Diameter 63 mm – 83 mm
Connection Type
Cable, 8-wire, universal, 1.5 m
Current Rating
30 mA
Switching Frequency
+ 60 kHz
