• SICK - 1084299
1 1

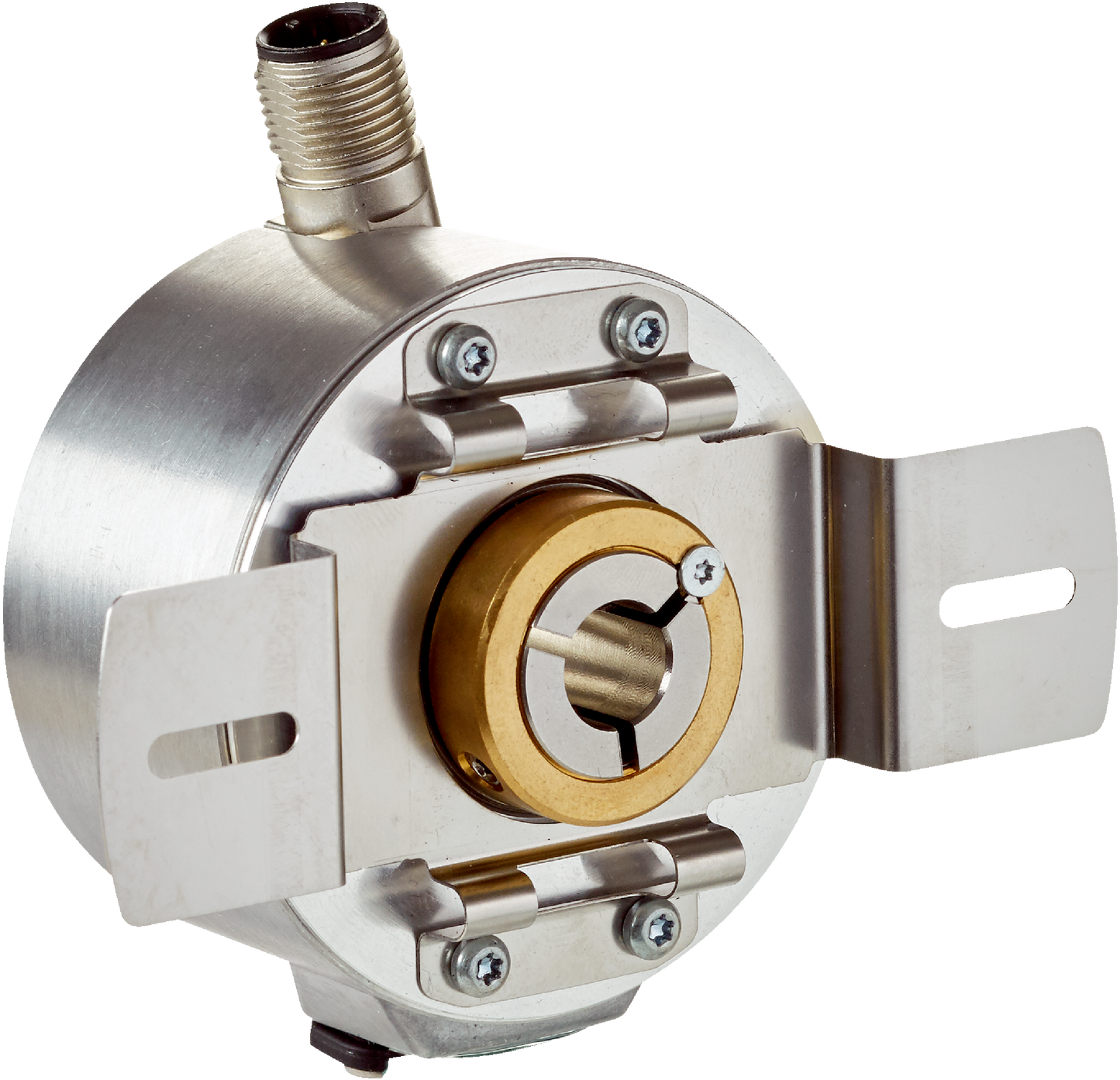

1084299 DUS60 - IP65 Motion Control Sensor, Through hollow shaft (90°, electric/pulses per revolution)

1084299 DUS60 - IP65 Motion Control Sensor, Through hollow shaft (90°, electric/pulses per revolution)

SKU1084299BrandSICK
AED 1,210.00
AED 1,210.00
Sale Sold out
Shipping calculated at checkout.

The 1084299 DUS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 90°, electric/pulses per revolution resolution and provides a reliable ttl / htl 1) output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 4.75 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
DUS60
Maximum Revolutions
1,500 min⁻¹
Output Signal Type
TTL / HTL 1)
Shaft Diameter
3/8" Front clamp
Supply Voltage
4.75 ... 30 V
Resolution
90°, electric/pulses per revolution
ParameterValue
IP Rating
IP65
Minimum Operating Temperature
-30 °C
Maximum Operating Temperature
+90 °C
Mounting Type
Through Hollow Shaft
Connection Type
Male connector, M12, 4-pin, universal 1)
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 60 kHz
