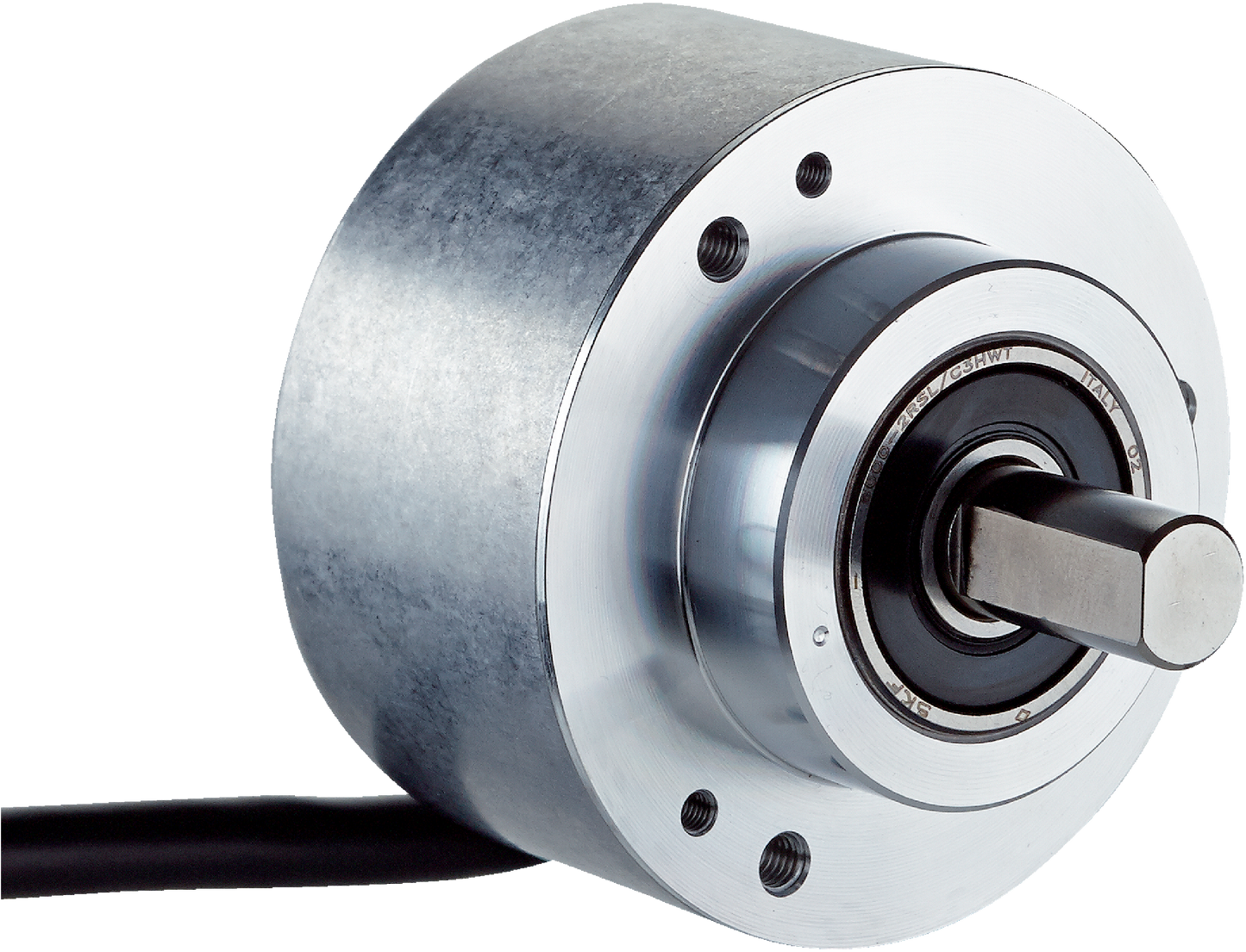

1084259 DBS60 - Incremental Motion Control Sensor, Flange with 3 x M3 and 3 x M4 (4,096)

1084259 DBS60 - Incremental Motion Control Sensor, Flange with 3 x M3 and 3 x M4 (4,096)

SKU1084259BrandSICK
AED 912.00
AED 912.00
Sale Sold out
Shipping calculated at checkout.

The 1084259 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 4,096 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a flange with 3 x m3 and 3 x m4 and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Cable Length
1.5 m
Series
DBS60
Pulses Per Revolution
4,096
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
TTL / RS-422
Shaft Type
Solid shaft, face mount flange
Shaft Diameter
10 mmWith flat
Supply Voltage
4.5 ... 5.5 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
≤ 90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Overall Depth
19 mm
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Flange With 3 x M3 And 3 x M4
Connection Type
Cable, 8-wire, universal, 1.5 m
Current Rating
30 mA
Switching Frequency
+ 300 kHz
