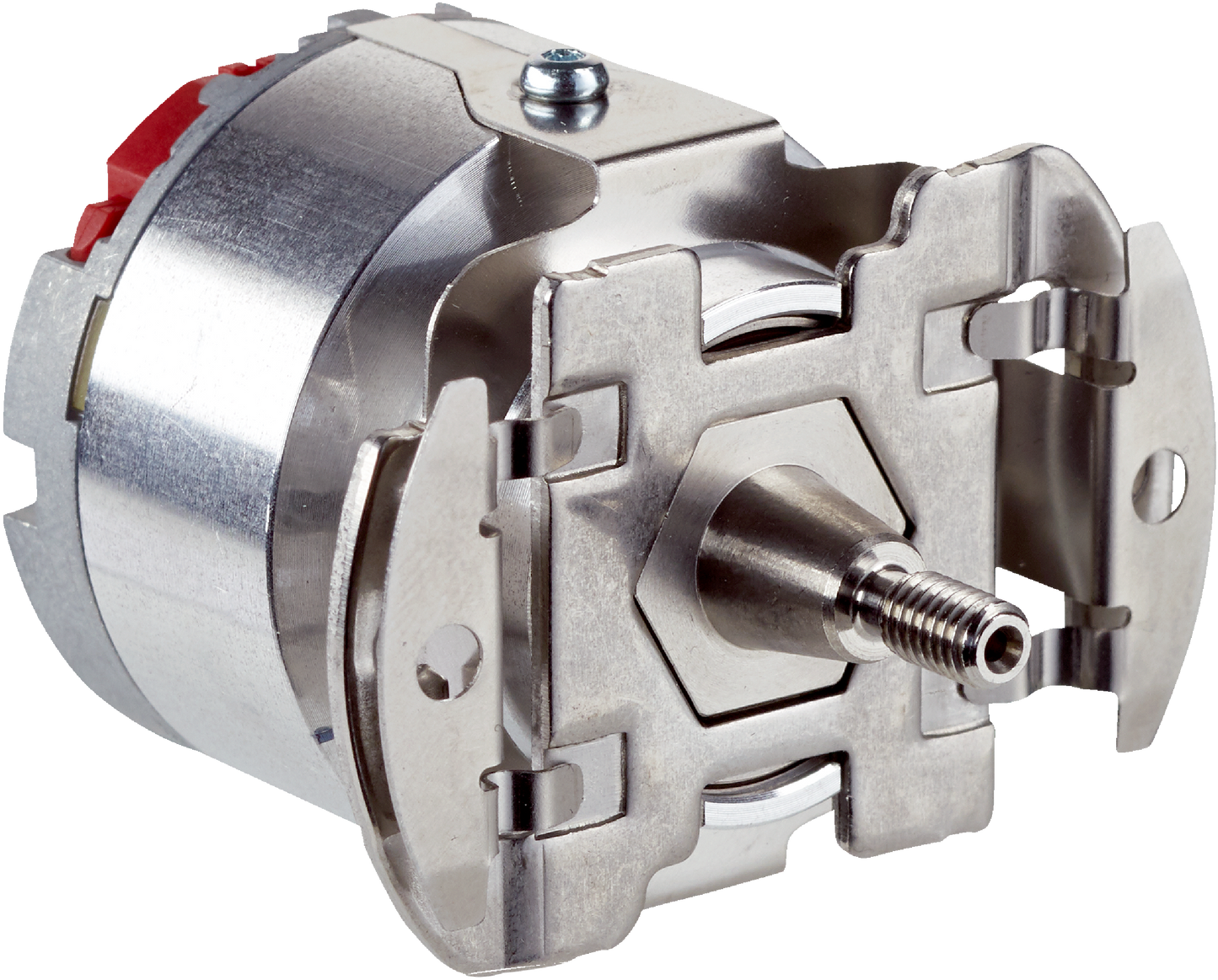

1084236 EKS/EKM36-S - Optical Motion Control Sensor, Stator coupling (Channel 1 = 18 bit or 20 bit, channel 2 = 9 bit)

1084236 EKS/EKM36-S - Optical Motion Control Sensor, Stator coupling (Channel 1 = 18 bit or 20 bit, channel 2 = 9 bit)

SKU1084236BrandSICK
AED 1,888.00
AED 1,888.00
Sale Sold out
Shipping calculated at checkout.

The 1084236 EKS/EKM36-S is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced optical encoder technology, this sensor delivers an exact channel 1 = 18 bit or 20 bit, channel 2 = 9 bit resolution and features a hiperface dsl® interface. Designed for secure and straightforward installation via a stator coupling and operating on a standard 7 v ... 12 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Optical
Series
EKS/EKM36-S
Supply Voltage
7 ... 12 V
Resolution
Channel 1 = 18 bit or 20 bit, channel 2 = 9 bit
IP Rating
IP40
ParameterValue
Interface
HIPERFACE DSL®
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+115 °C
Mounting Type
Stator Coupling
Connection Type
Male connector, 4-pin
