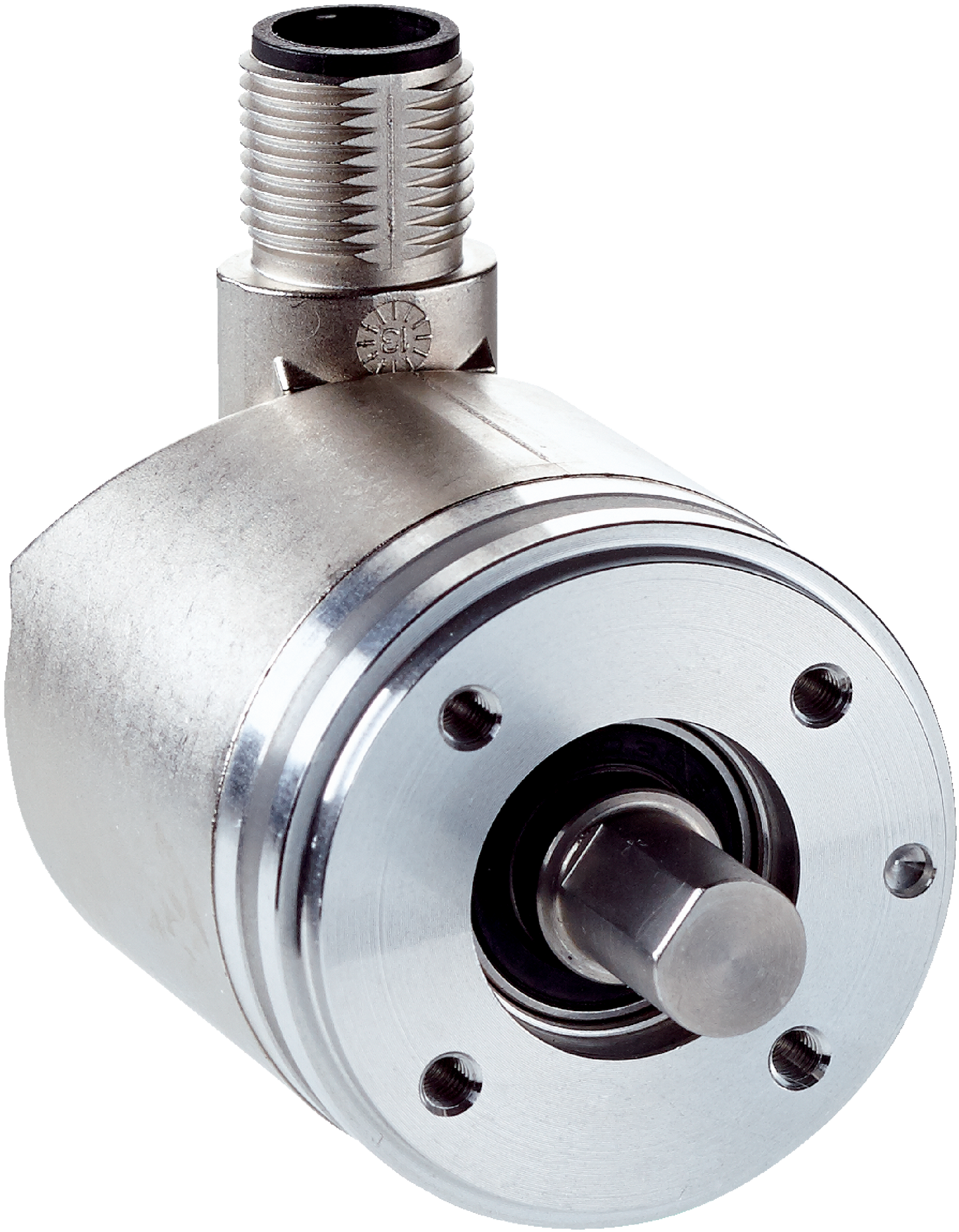

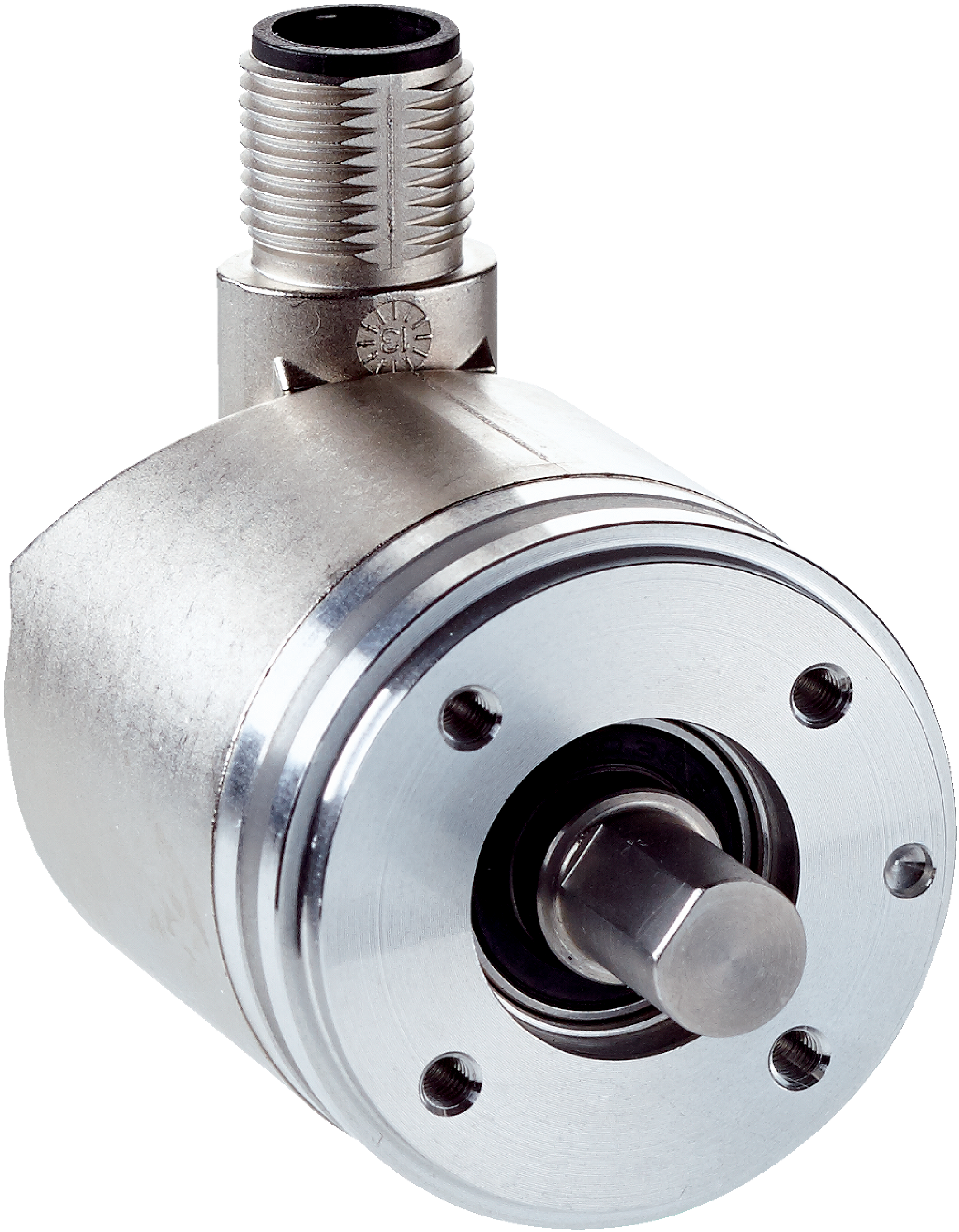

1084189 AHM36B - SSI Motion Control Sensor, Solid shaft, Servo flange (4,096 (12 bit))

1084189 AHM36B - SSI Motion Control Sensor, Solid shaft, Servo flange (4,096 (12 bit))

SKU1084189BrandSICK
AED 1,922.00
AED 1,922.00
Sale Sold out
Shipping calculated at checkout.

The 1084189 AHM36B is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a ssi interface, this sensor delivers an exact 4,096 (12 bit) resolution and supports ≤ 6,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 4.5 ... 32 v dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AHM36B
Pulses Per Revolution
4,096 (12 bit)
Maximum Revolutions
≤ 6,000 min⁻¹
Shaft Type
With flat
Shaft Diameter
3/8"
Supply Voltage
4.5 ... 32 V DC
Resolution
4,096 (12 bit)
ParameterValue
Steps Per Revolution
4,096 (12 bit)
IP Rating
IP65
Interface
SSI
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+70 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Male connector, M12, 8-pin, universal
Switching Frequency
2 MHz
