• SICK - 1084139
1 1

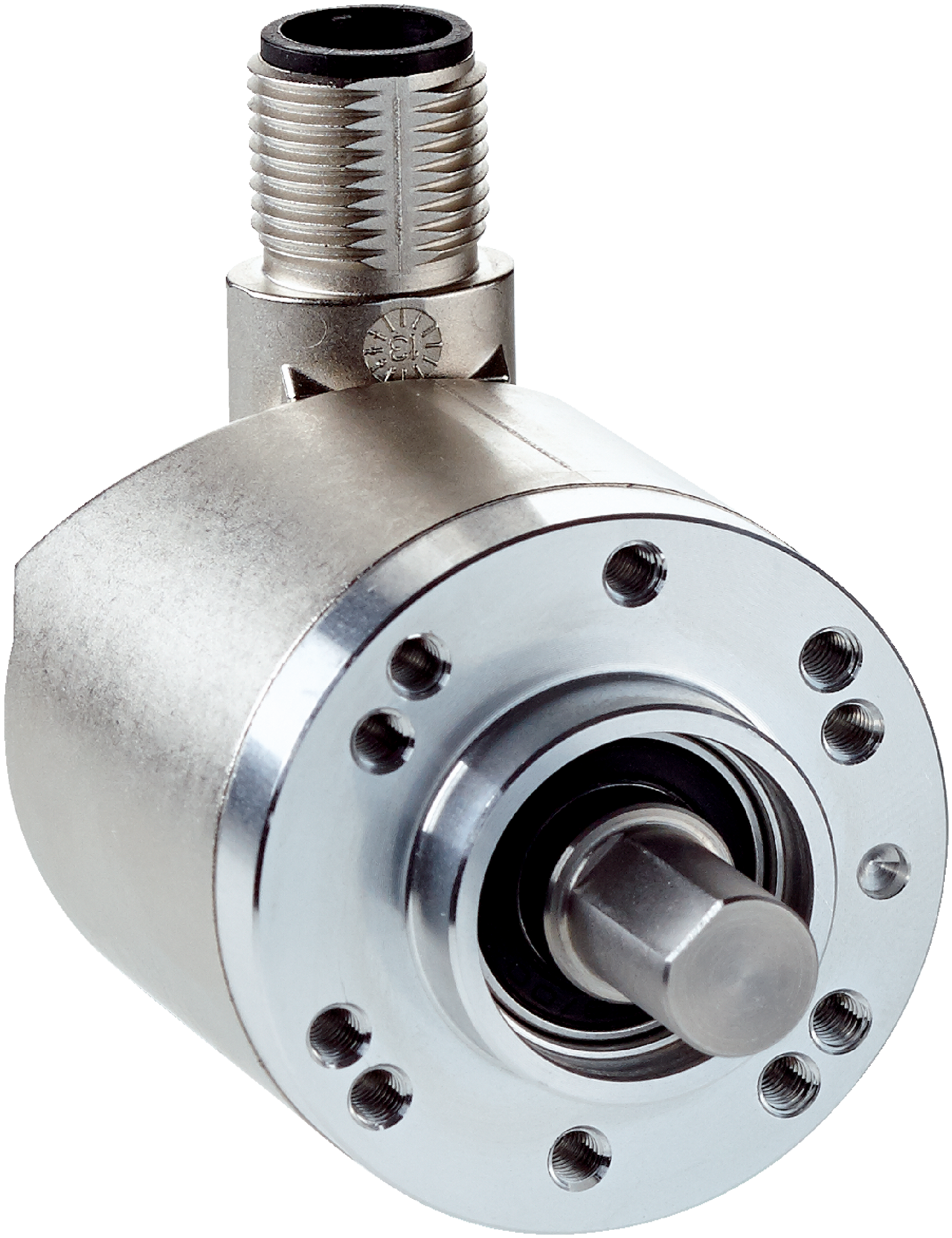

1084139 AHS36 - IP67 Motion Control Sensor, Solid shaft, face mount flange (16,384 (14 bit))

1084139 AHS36 - IP67 Motion Control Sensor, Solid shaft, face mount flange (16,384 (14 bit))

SKU1084139BrandSICK
AED 2,326.00
AED 2,326.00
Sale Sold out
Shipping calculated at checkout.

The 1084139 AHS36 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 16,384 (14 bit) resolution and supports ≤ 6,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 10 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AHS36
Maximum Revolutions
≤ 6,000 min⁻¹
Shaft Diameter
10 mm
Supply Voltage
10 ... 30 V
Resolution
16,384 (14 bit)
ParameterValue
Steps Per Revolution
16,384 (14 bit)
IP Rating
IP67
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Male connector, M12, 5-pin, universal
