• SICK - 1084124
1 1

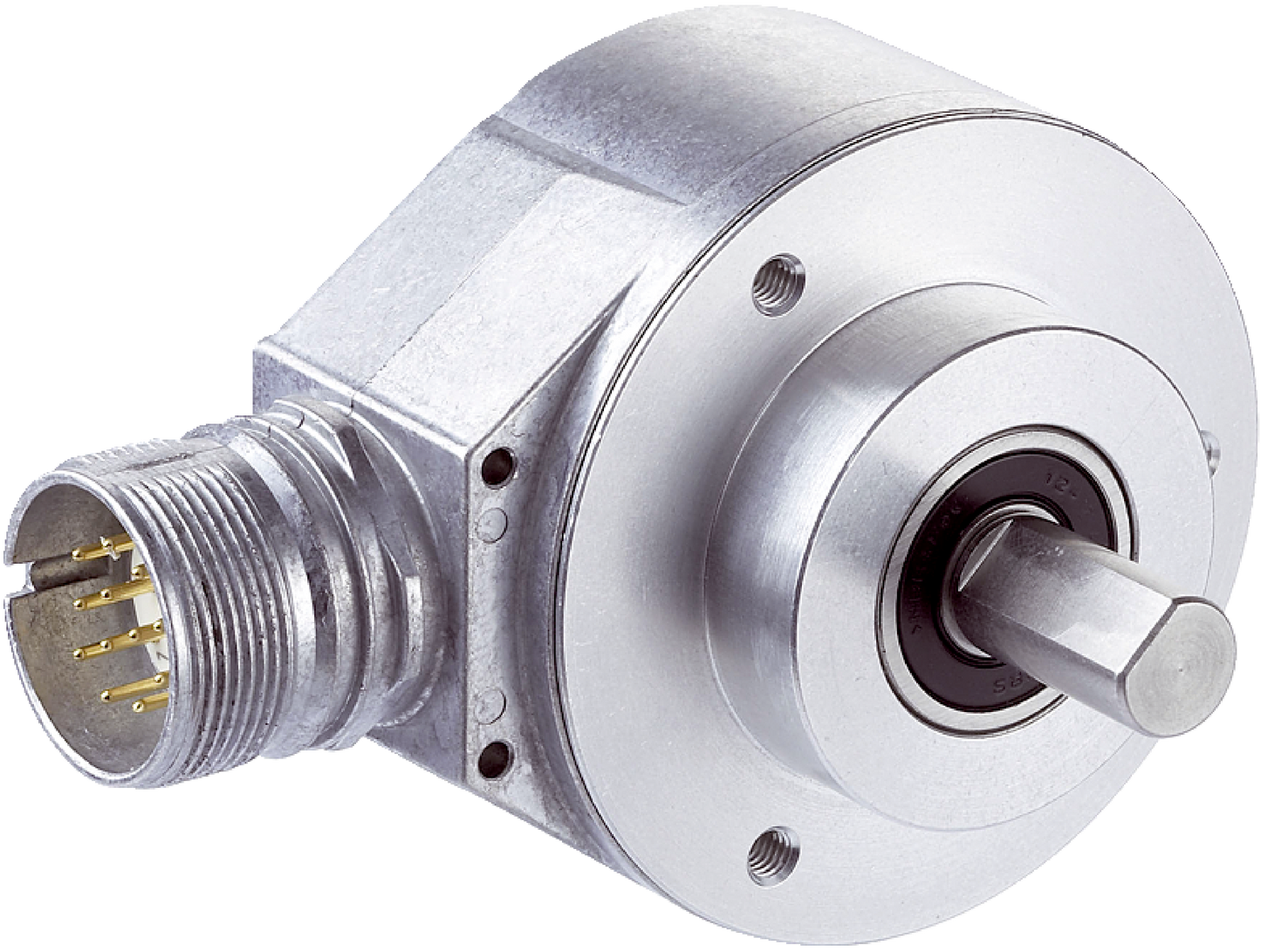

1084124 AFM60B - SSI Motion Control Sensor, Solid shaft, face mount flange (4,096 (12 bit))

1084124 AFM60B - SSI Motion Control Sensor, Solid shaft, face mount flange (4,096 (12 bit))

SKU1084124BrandSICK
AED 3,362.00
AED 3,362.00
Sale Sold out
Shipping calculated at checkout.

The 1084124 AFM60B is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a ssi interface, this sensor delivers an exact 4,096 (12 bit) resolution and draws ≤ 30 ma. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 4.5 ... 32 v dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AFM60B
Pulses Per Revolution
4,096 (12 bit)
Maximum Revolutions
≤ 9,000 min⁻¹
Shaft Type
With flat
Shaft Diameter
10 mm
Supply Voltage
4.5 ... 32 V DC
Resolution
4,096 (12 bit)
Steps Per Revolution
4,096 (12 bit)
ParameterValue
IP Rating
IP67
Interface
SSI
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Male connector, M23, 12-pin, radial, Customer-specific pin assignment
Current Rating
≤ 30 mA
Switching Frequency
≤ 2 MHz
