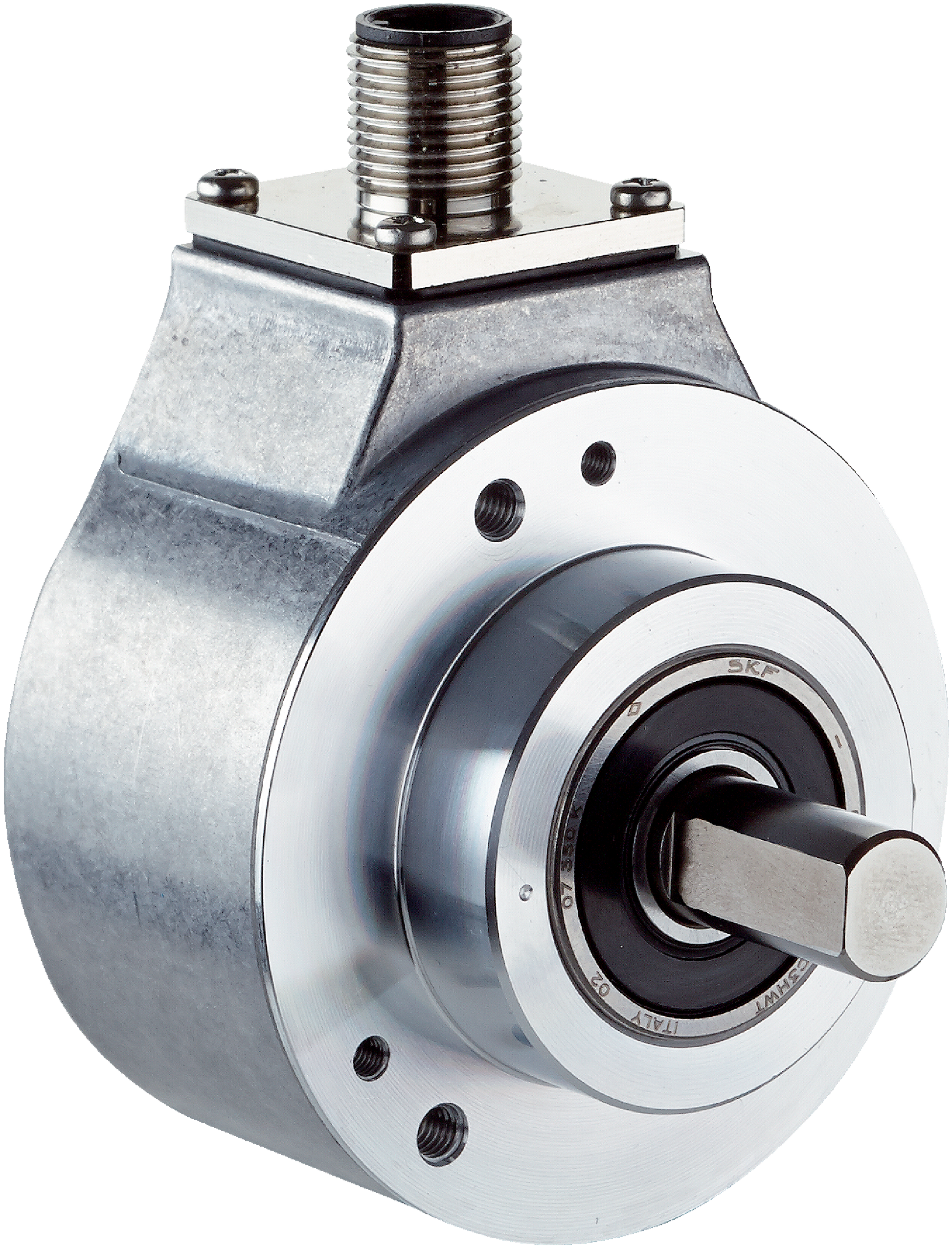

1084051 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (360)

1084051 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (360)

SKU1084051BrandSICK
AED 904.00
AED 904.00
Sale Sold out
Shipping calculated at checkout.

The 1084051 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 360 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
DBS60
Pulses Per Revolution
360
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Diameter
10 mmWith flat
Supply Voltage
10 ... 27 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
IP Rating
IP67
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Male connector, M12, 8-pin, radial
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 2)
