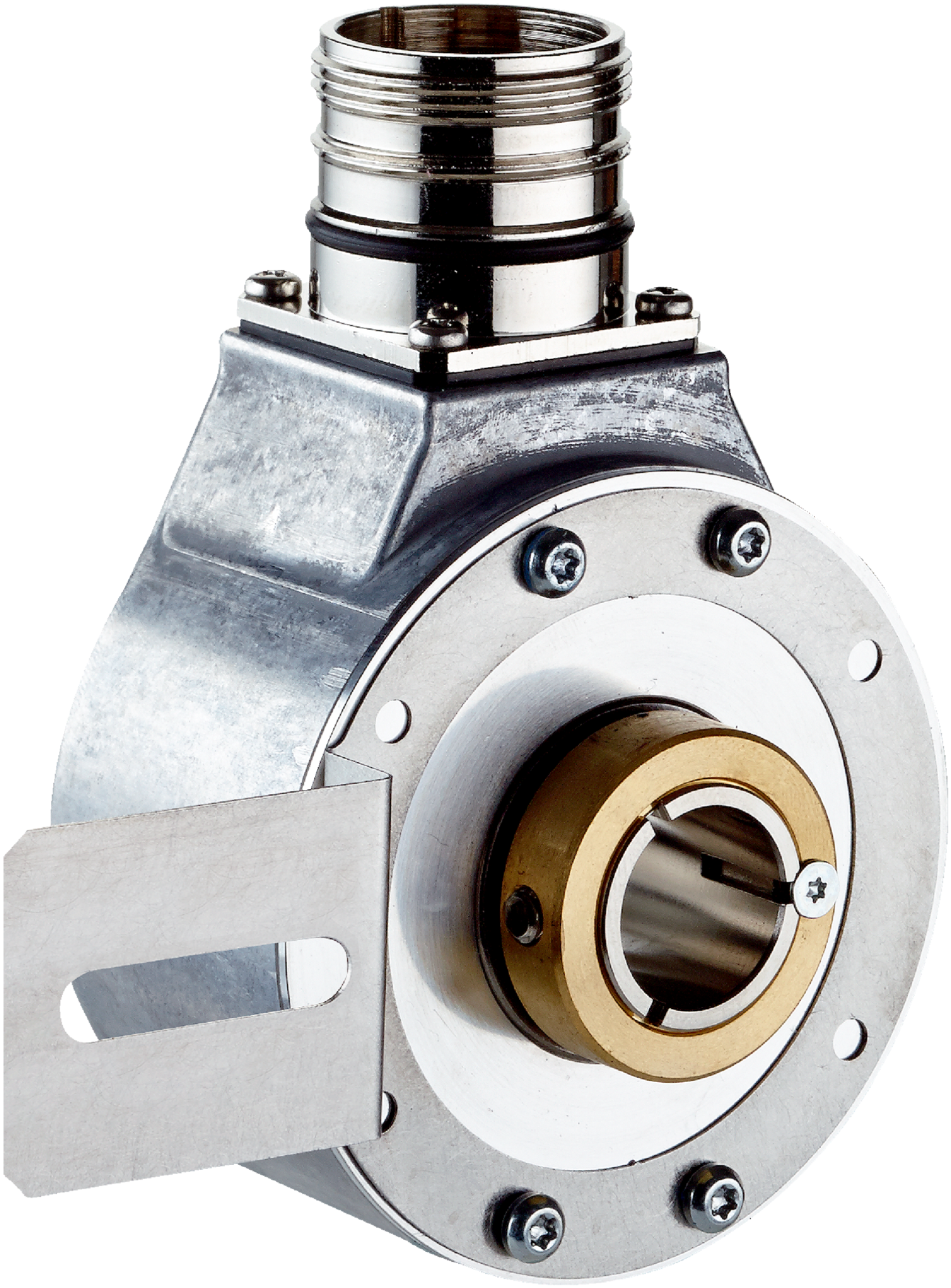

1084048 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (1,024)

1084048 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (1,024)

SKU1084048BrandSICK
AED 1,070.00
AED 1,070.00
Sale Sold out
Shipping calculated at checkout.

The 1084048 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 1,024 resolution and provides a reliable ttl / htl / htl 1) output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 4.5 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
DBS60
Pulses Per Revolution
1,024
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
TTL / HTL / HTL 1)
Shaft Diameter
15 mmFront clamp
Supply Voltage
4.5 ... 30 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
IP Rating
IP65
Minimum Operating Temperature
-30 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Through Hollow Shaft
Connection Type
Male connector, M23, 12-pin, radial
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 3)
