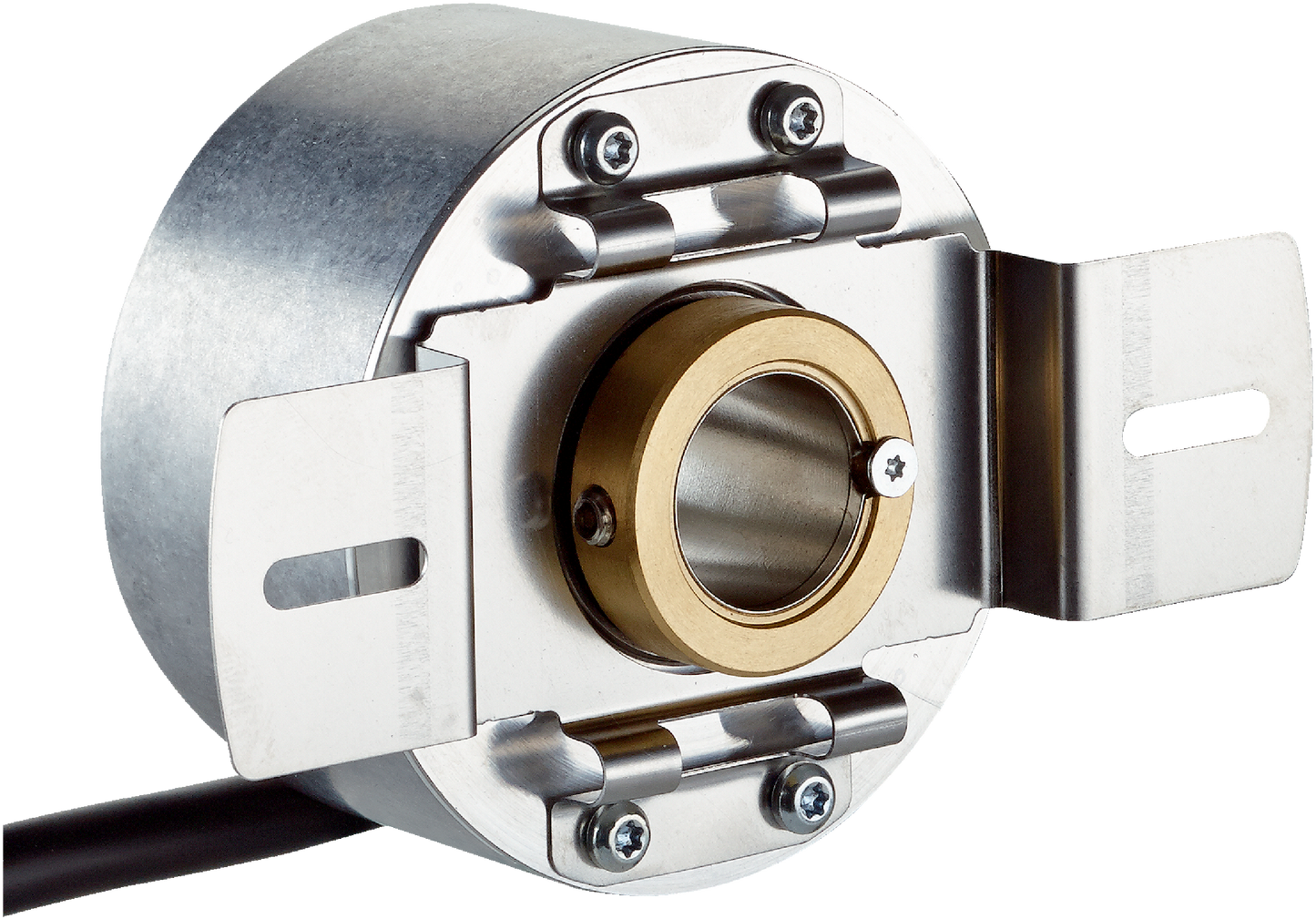

1084046 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (1,024)

1084046 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (1,024)

SKU1084046BrandSICK
AED 1,010.00
AED 1,010.00
Sale Sold out
Shipping calculated at checkout.

The 1084046 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 1,024 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
3 m
Series
DBS60
Pulses Per Revolution
1,024
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Diameter
10 mmFront clamp
Supply Voltage
10 ... 27 V
ParameterValue
Resolution
≤ 90°, electric/pulses per revolution
IP Rating
IP65
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Through Hollow Shaft
Connection Type
Cable, 8-wire, universal, 3 m 1)
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 2)
