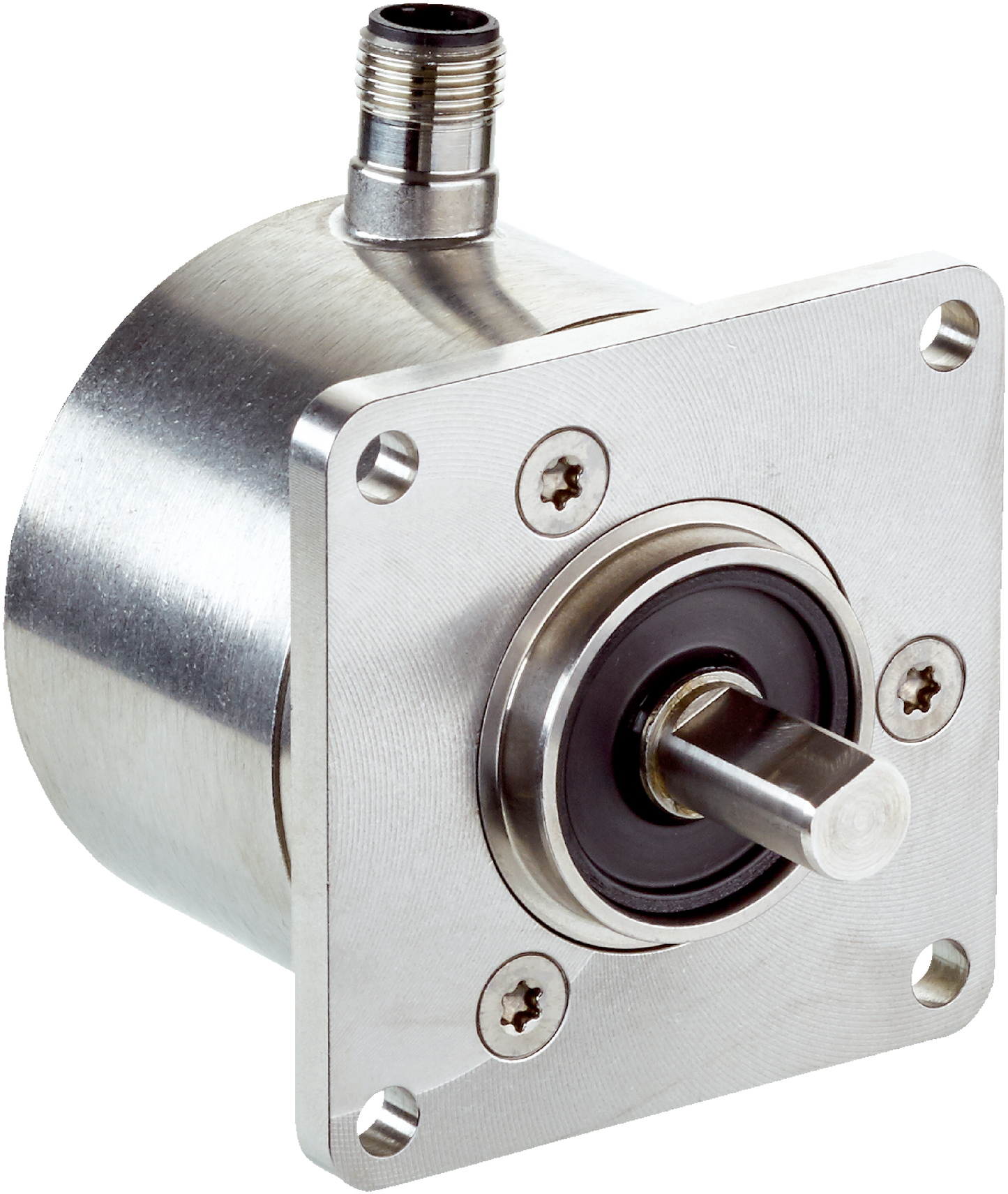

1083991 AFM60I - SSI Motion Control Sensor, Solid shaft, Square flange (262,144 (18 bit))

1083991 AFM60I - SSI Motion Control Sensor, Solid shaft, Square flange (262,144 (18 bit))

SKU1083991BrandSICK
AED 4,239.00
AED 4,239.00
Sale Sold out
Shipping calculated at checkout.

The 1083991 AFM60I is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a ssi interface, this sensor delivers an exact 262,144 (18 bit) resolution and draws ≤ 30 ma. Designed for secure and straightforward installation via a solid shaft, square flange and operating on a standard 4.5 ... 32 v dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AFM60I
Pulses Per Revolution
262,144 (18 bit)
Maximum Revolutions
9,000 min⁻¹
Shaft Type
With flat
Shaft Diameter
10 mm
Supply Voltage
4.5 ... 32 V DC
Resolution
262,144 (18 bit)
Steps Per Revolution
262,144 (18 bit)
ParameterValue
IP Rating
IP67
Interface
SSI
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Solid Shaft, Square Flange
Connection Type
Male connector, M12, 12-pin, radial
Current Rating
≤ 30 mA
Switching Frequency
2 MHz
