• SICK - 1083974
1 1

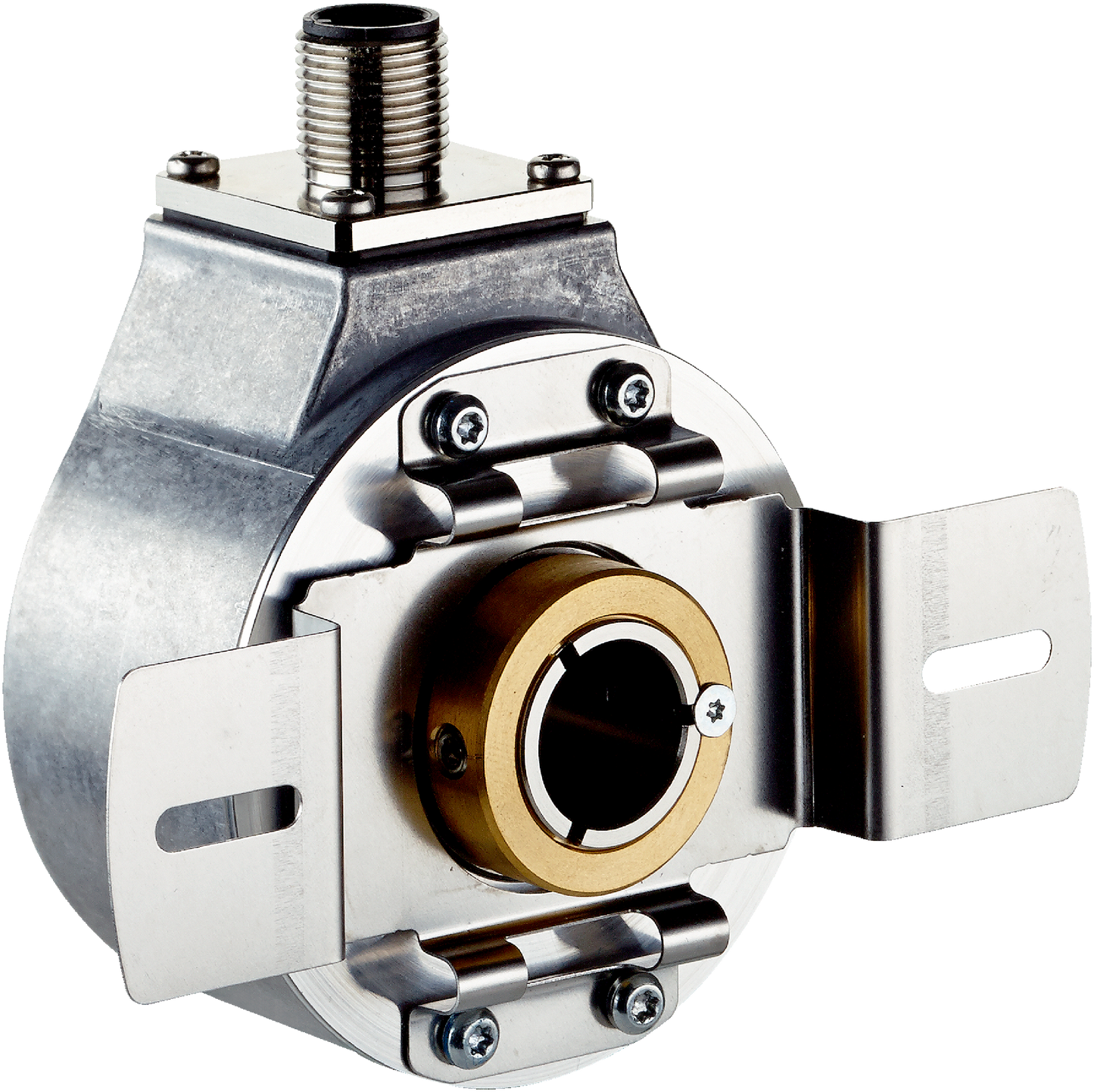

1083974 DBS60 - Incremental Motion Control Sensor, 2-sided stator coupling, slot, screw hole circle 63–83 mm (3,600)

1083974 DBS60 - Incremental Motion Control Sensor, 2-sided stator coupling, slot, screw hole circle 63–83 mm (3,600)

SKU1083974BrandSICK
AED 1,044.00
AED 1,044.00
Sale Sold out
Shipping calculated at checkout.

The 1083974 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 3,600 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a 2-sided stator coupling, slot, screw hole circle 63–83 mm and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Series
DBS60
Pulses Per Revolution
3,600
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
TTL / RS-422
Shaft Type
Blind hollow shaft
Shaft Diameter
10 mmFront clamp
Supply Voltage
4.5 ... 5.5 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
≤ 90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
2-Sided Stator Coupling, Slot, Screw Hole Circle 63–83 mm
Connection Type
Male connector, M12, 8-pin, radial
Current Rating
30 mA
Switching Frequency
+ 300 kHz
