• SICK - 1083970
1 1

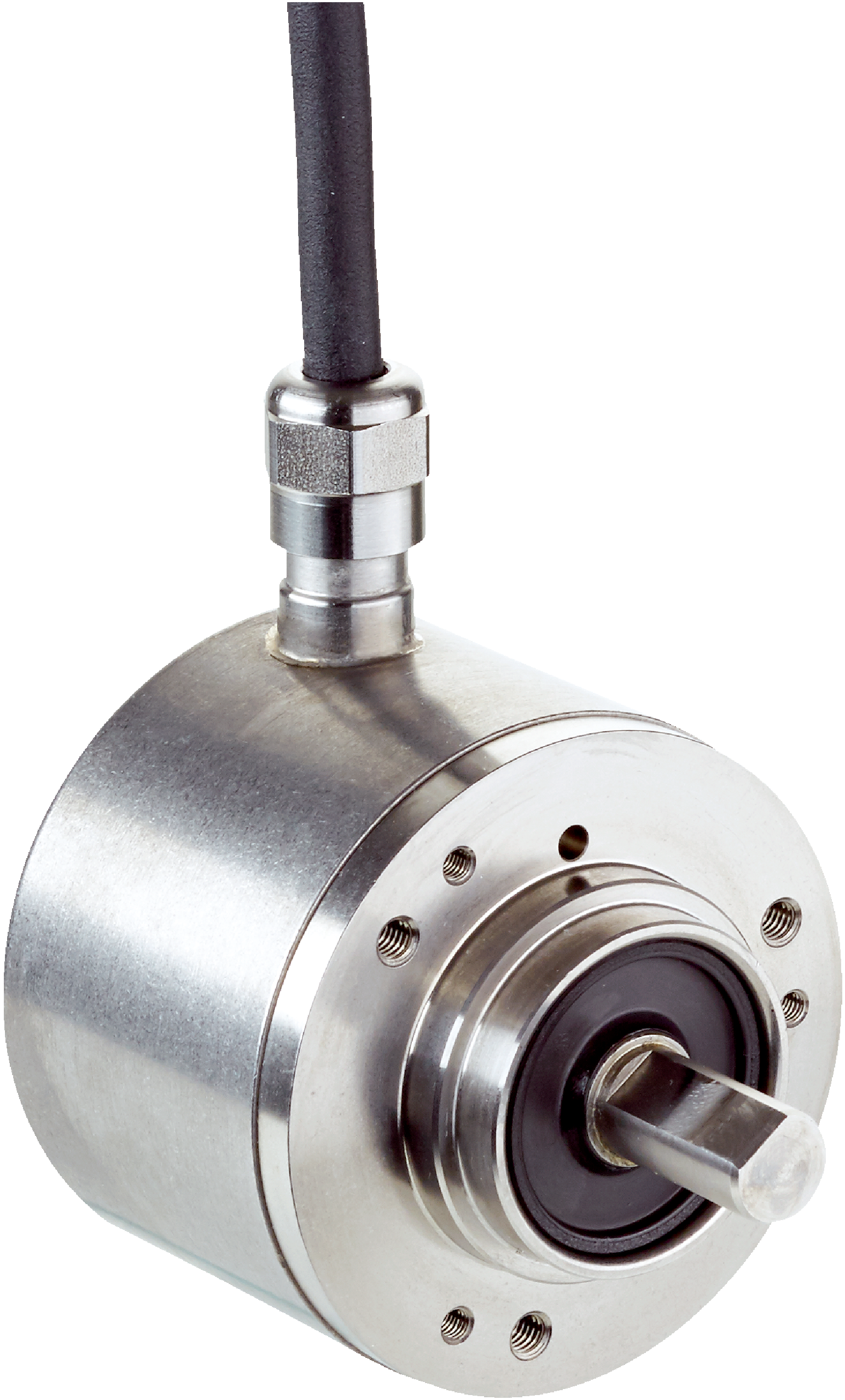

1083970 DFS60 - Incremental Motion Control Sensor, Solid shaft, face mount flange (65,536)

1083970 DFS60 - Incremental Motion Control Sensor, Solid shaft, face mount flange (65,536)

SKU1083970BrandSICK
AED 2,318.00
AED 2,318.00
Sale Sold out
Shipping calculated at checkout.

The 1083970 DFS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 65,536 resolution and provides a reliable htl output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 4.5 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Cable Length
1.5 m
Series
DFS60
Pulses Per Revolution
65,536
Maximum Revolutions
≤ 9,000 min⁻¹
Output Signal Type
HTL
Shaft Type
Solid shaft, face mount flange
Shaft Diameter
10 mmWith flat
Supply Voltage
4.5 ... 32 V
Resolution
90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Overall Depth
19 mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Cable, 8-wire, radial, 1.5 m
Current Rating
30 mA
Switching Frequency
≤ 820 kHz
