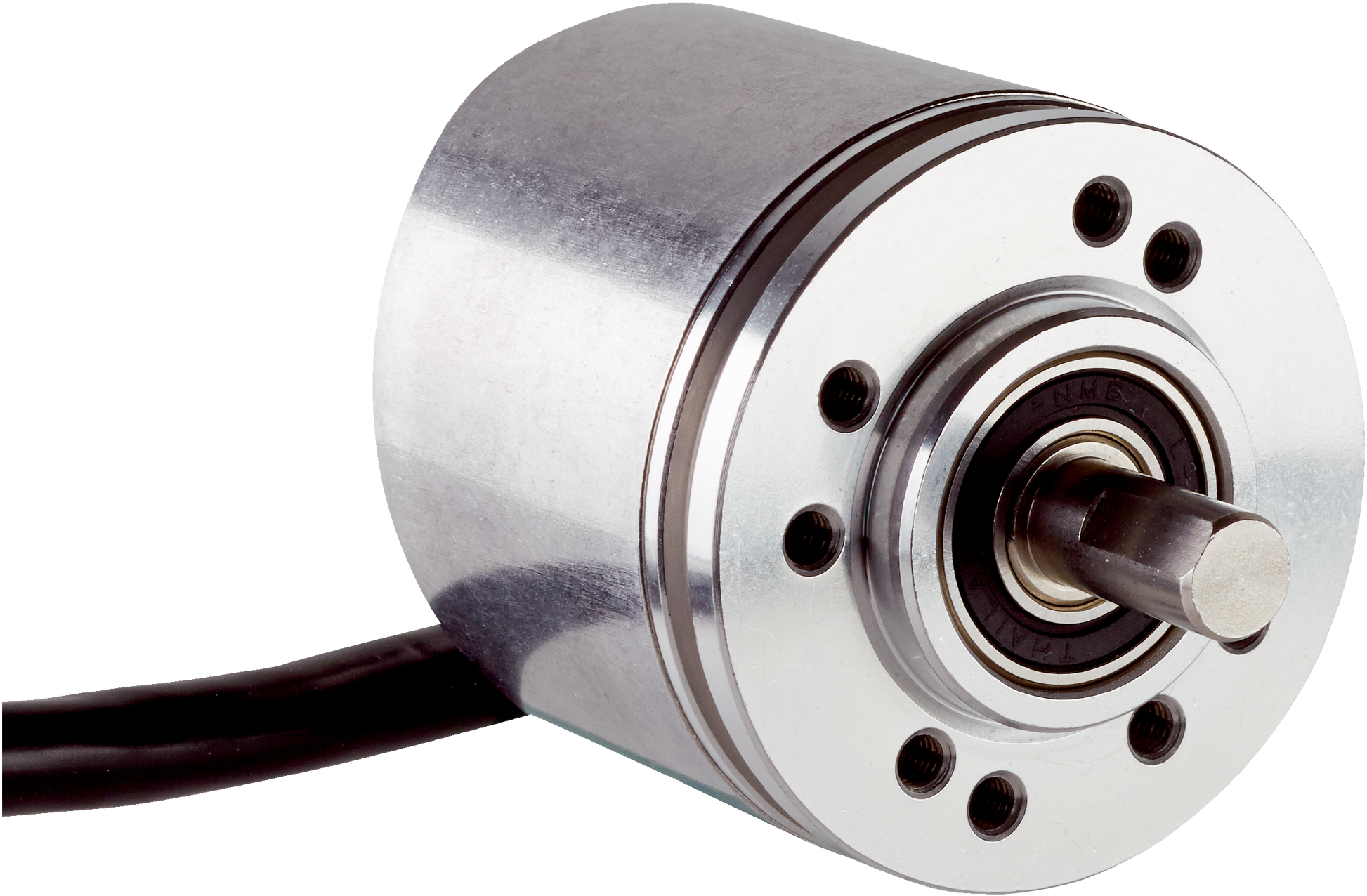

1083833 DBS36 - IP65 Motion Control Sensor, Solid shaft, face mount flange (20)

1083833 DBS36 - IP65 Motion Control Sensor, Solid shaft, face mount flange (20)

SKU1083833BrandSICK
AED 439.00
AED 439.00
Sale Sold out
Shipping calculated at checkout.

Available

The 1083833 DBS36 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 20 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 7 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
  • Brand: Sick
  • Cable Length: 0.5 m
  • Series: DBS36
  • Pulses Per Revolution: 20
  • Maximum Revolutions: 6,000 min⁻¹
  • Output Signal Type: HTL / Push-Pull
  • Shaft Diameter: 6 mmWith flat
  • Supply Voltage: 7 ... 30 V
  • Resolution: 90°, electric/pulses per revolution
  • IP Rating: IP65
  • Minimum Operating Temperature: -20 °C
  • Maximum Operating Temperature: +95 °C
  • Mounting Type: Solid Shaft, Face Mount Flange
  • Connection Type: Cable, 8-wire, universal, 0.5 m
  • Current Rating: ≤ 30 mA
  • Switching Frequency: ≤ 300 kHz
