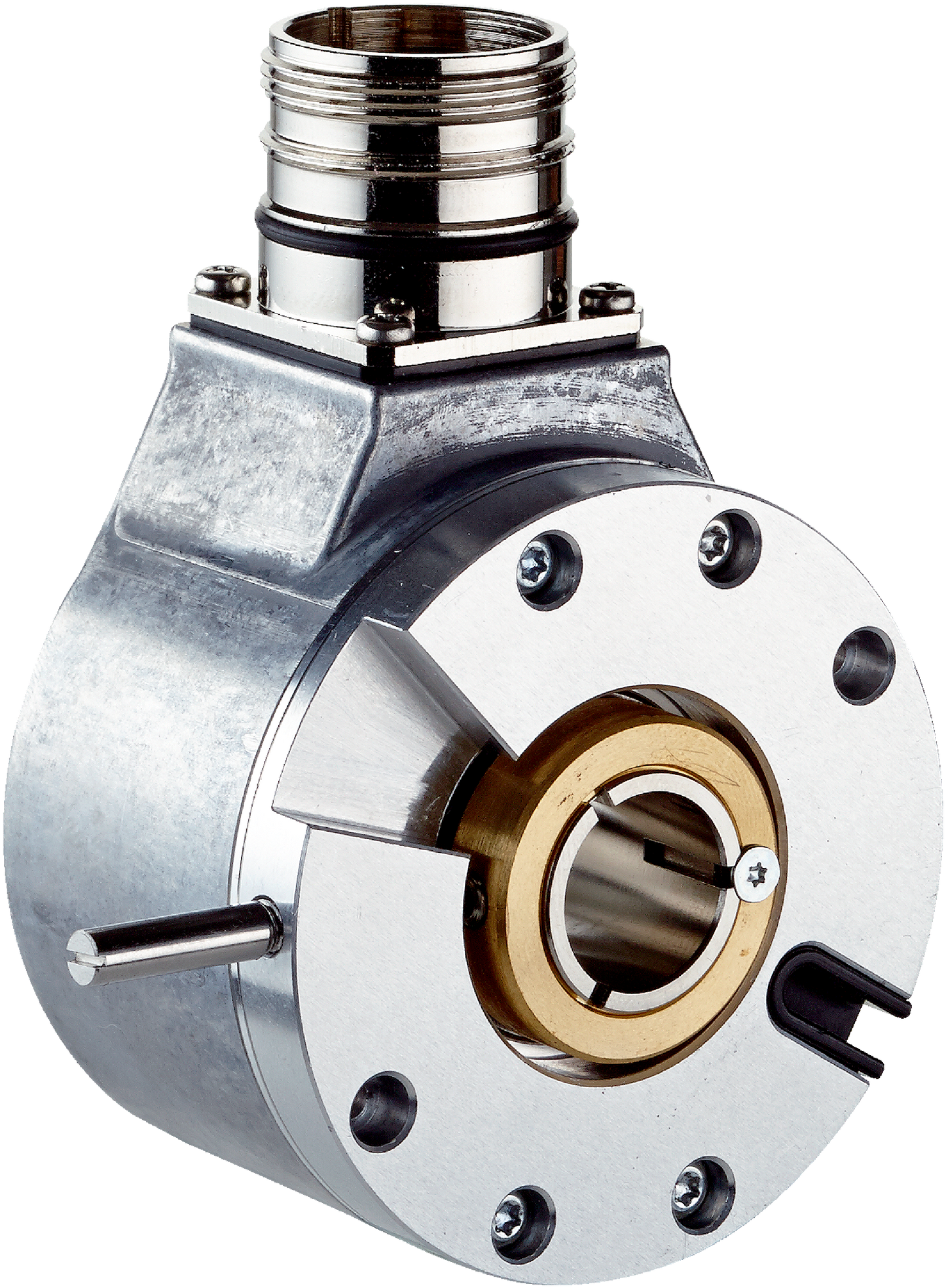

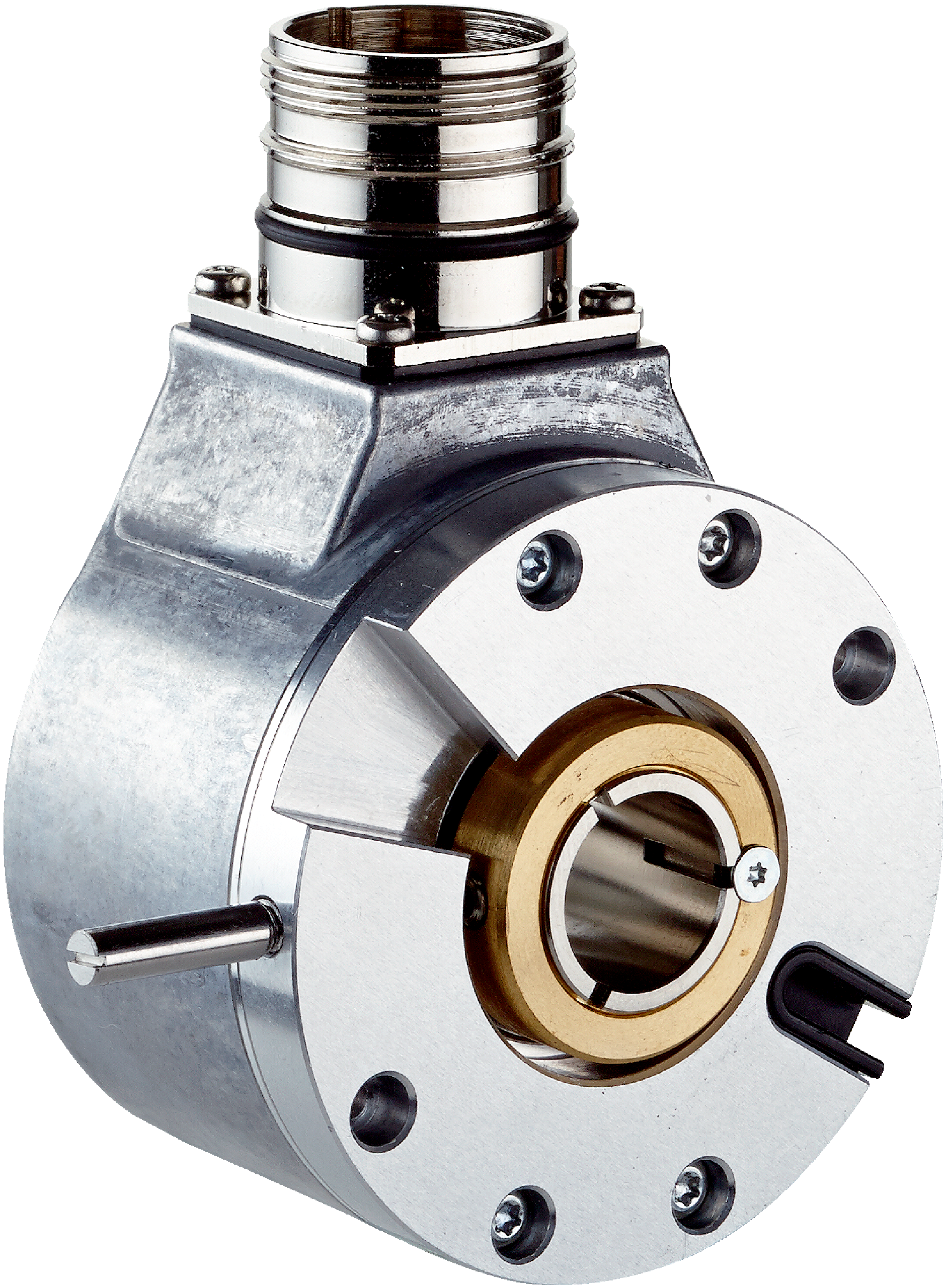

1083813 DBS60 - Incremental Motion Control Sensor, Axial and radial register pin mounting, for 4 mm register pin (1,024)

1083813 DBS60 - Incremental Motion Control Sensor, Axial and radial register pin mounting, for 4 mm register pin (1,024)

SKU1083813BrandSICK
AED 1,053.00
AED 1,053.00
Sale Sold out
Shipping calculated at checkout.

The 1083813 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 1,024 resolution and provides a reliable htl / push-pull output signal type. Designed for secure and straightforward installation via an axial and radial register pin mounting, for 4 mm register pin and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Series
DBS60
Pulses Per Revolution
1,024
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Type
Blind hollow shaft
Shaft Diameter
10 mmFront clamp
Supply Voltage
10 ... 27 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
≤ 90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Axial And Radial Register Pin Mounting, For 4 mm Register Pin
Connection Type
Male connector, M23, 12-pin, radial
Current Rating
30 mA
Switching Frequency
+ 300 kHz
