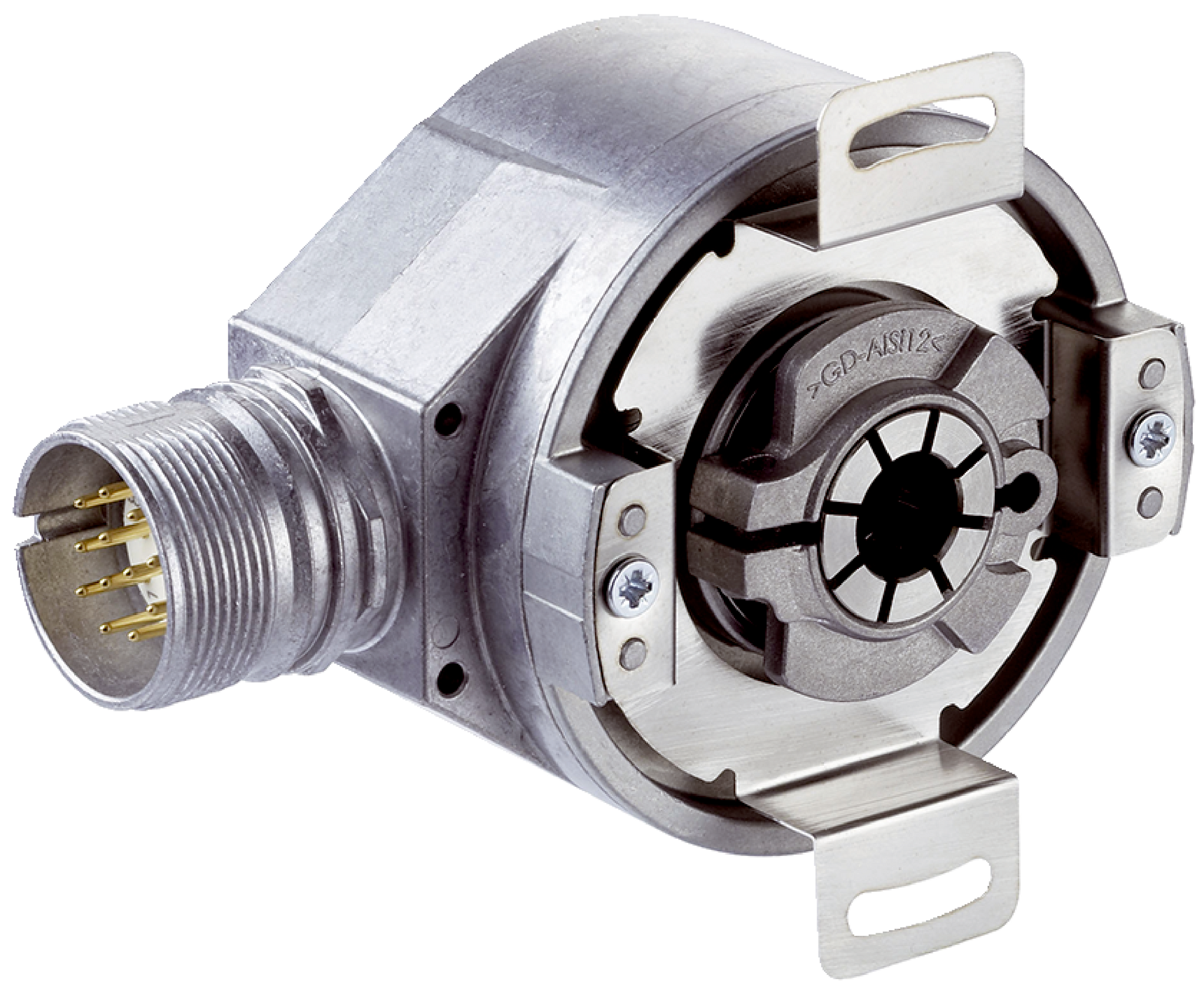

1083812 DFS60 - Incremental Motion Control Sensor, Blind hollow shaft (6,911)

1083812 DFS60 - Incremental Motion Control Sensor, Blind hollow shaft (6,911)

SKU1083812BrandSICK
AED 1,436.00
AED 1,436.00
Sale Sold out
Shipping calculated at checkout.

The 1083812 DFS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 6,911 resolution and provides a reliable htl / push-pull output signal type. Designed for secure and straightforward installation via a blind hollow shaft and operating on a standard 4.5 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Series
DFS60
Pulses Per Revolution
6,911
Maximum Revolutions
≤ 6,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Type
Blind hollow shaft
Shaft Diameter
15 mmFront clamp
Supply Voltage
4.5 ... 32 V
Resolution
90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Blind Hollow Shaft
Connection Type
Male connector, M23, 12-pin, radial
Current Rating
30 mA
Switching Frequency
≤ 600 kHz
