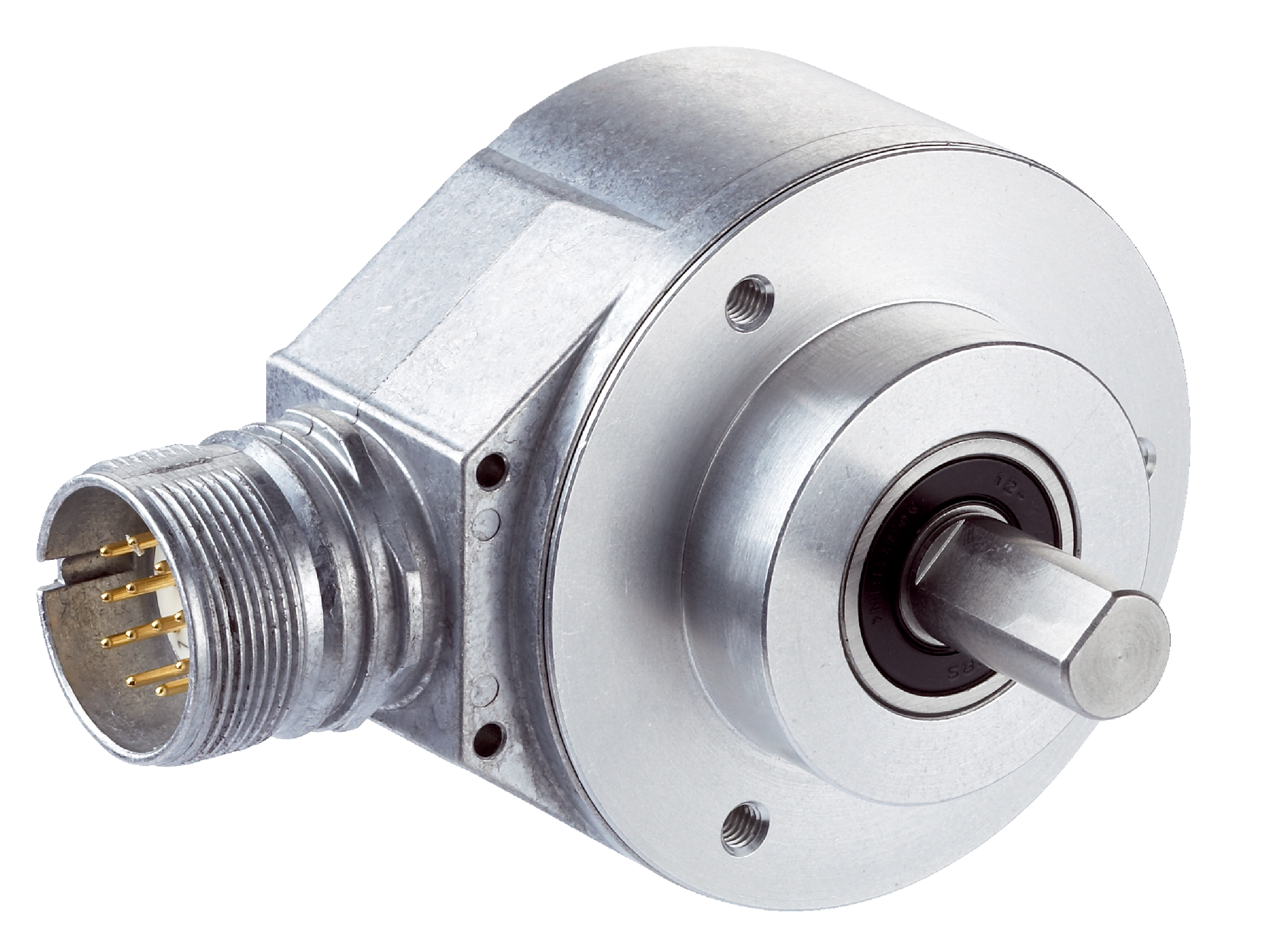

1083811 DFS60 - Incremental Motion Control Sensor, Solid shaft, face mount flange (40)

1083811 DFS60 - Incremental Motion Control Sensor, Solid shaft, face mount flange (40)

SKU1083811BrandSICK
AED 1,095.00
AED 1,095.00
Sale Sold out
Shipping calculated at checkout.

The 1083811 DFS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 40 resolution and provides a reliable htl / push-pull output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 10 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Encoder Technology
Incremental
Series
DFS60
Pulses Per Revolution
40
Maximum Revolutions
≤ 9,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Type
Solid shaft, face mount flange
Shaft Diameter
10 mmWith flat
Supply Voltage
10 ... 32 V
Resolution
90°, electric/pulses per revolution
ParameterValue
Steps Per Revolution
90°, electric/pulses per revolution
IP Rating
IP67
Interface
Incremental
Overall Depth
19 mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Male connector, M23, 12-pin, radial
Current Rating
30 mA
Switching Frequency
≤ 600 kHz
