• SICK - 1083695
1 1

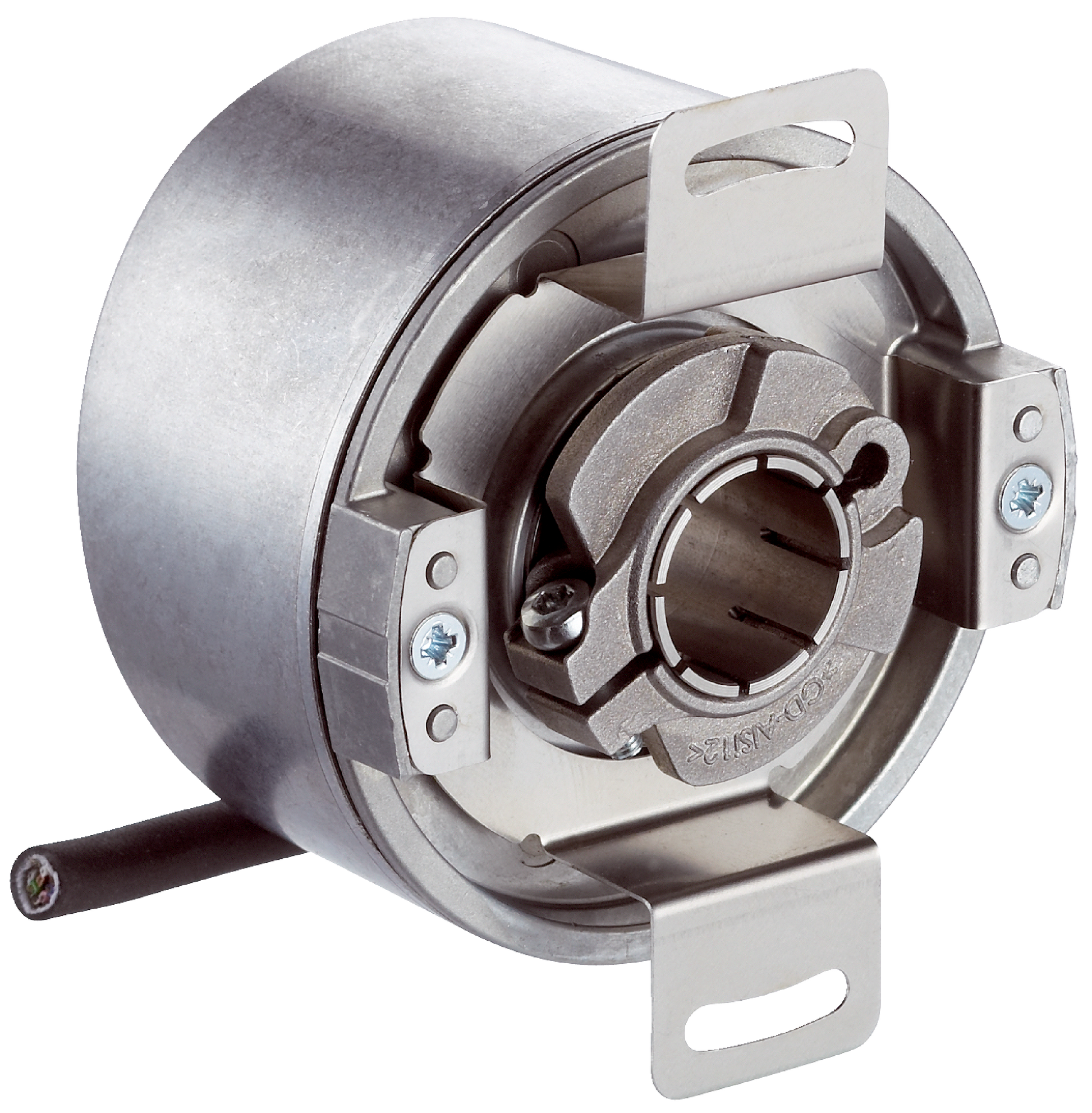

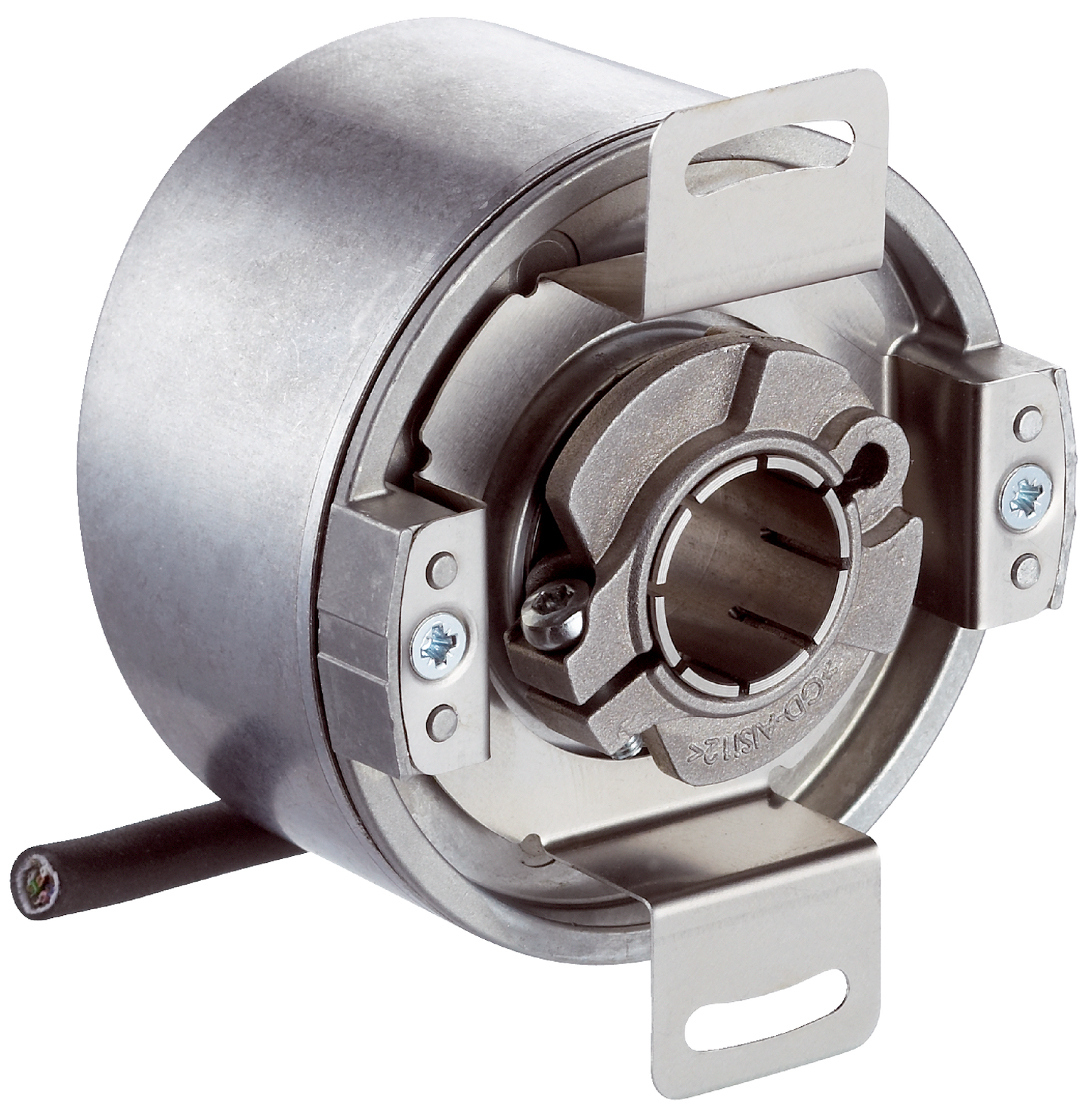

1083695 DFS60 - IP65 Motion Control Sensor, Through hollow shaft (1,250)

1083695 DFS60 - IP65 Motion Control Sensor, Through hollow shaft (1,250)

SKU1083695BrandSICK
AED 1,168.00
AED 1,168.00
Sale Sold out
Shipping calculated at checkout.

The 1083695 DFS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 1,250 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
1.5 m
Series
DFS60
Pulses Per Revolution
1,250
Maximum Revolutions
≤ 6,000 min⁻¹
Output Signal Type
TTL / RS-422
Shaft Diameter
12 mmFront clamp
Supply Voltage
4.5 ... 5.5 V
ParameterValue
Resolution
90°, electric/pulses per revolution
IP Rating
IP65
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Through Hollow Shaft
Connection Type
Cable, 8-wire, universal, 1.5 m 1)
Current Rating
≤ 30 mA
Switching Frequency
≤ 600 kHz
