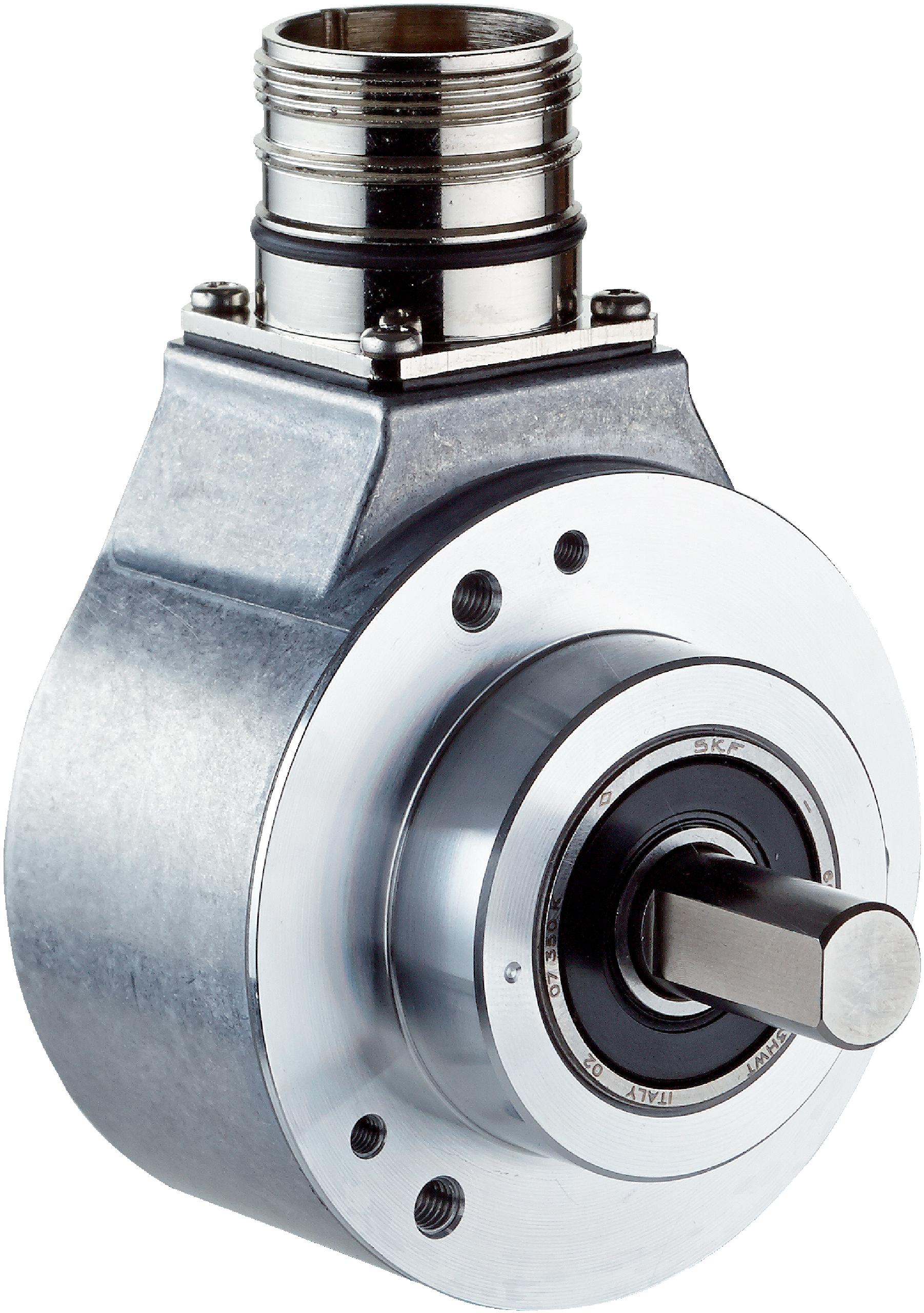

• SICK - 1083657
1 1

1083657 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (5,000)

1083657 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (5,000)

SKU1083657BrandSICK
AED 1,023.00
AED 1,023.00
Sale Sold out
Shipping calculated at checkout.

The 1083657 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 5,000 resolution and provides a reliable ttl / htl / htl 1) output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 4.5 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
DBS60
Pulses Per Revolution
5,000
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
TTL / HTL / HTL 1)
Shaft Diameter
6 mmWith flat
Supply Voltage
4.5 ... 30 V
Resolution
≤ 90°, electric/pulses per revolution
ParameterValue
IP Rating
IP67
Minimum Operating Temperature
-30 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Face Mount Flange
Connection Type
Male connector, M23, 12-pin, radial
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 3)
