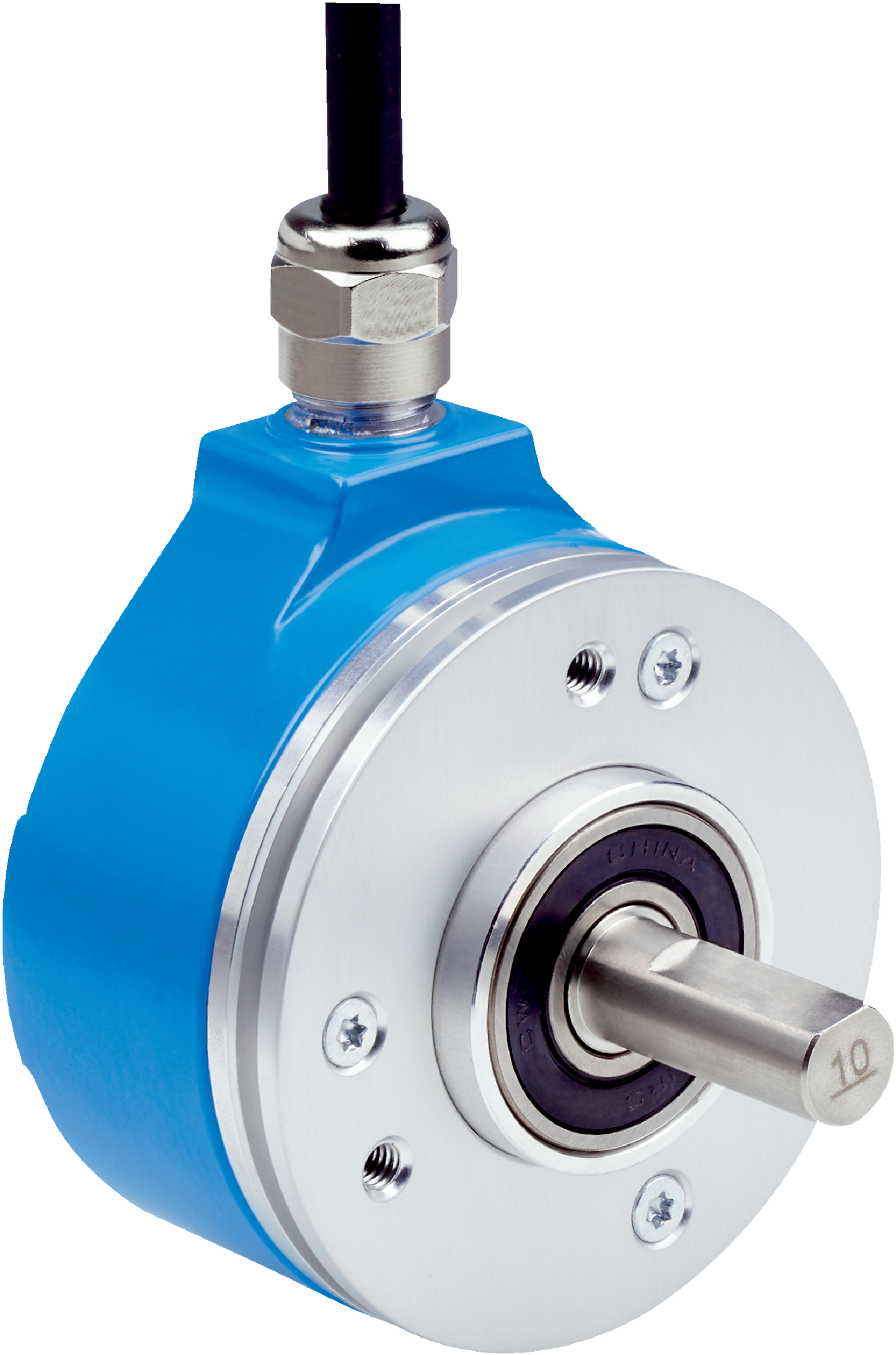

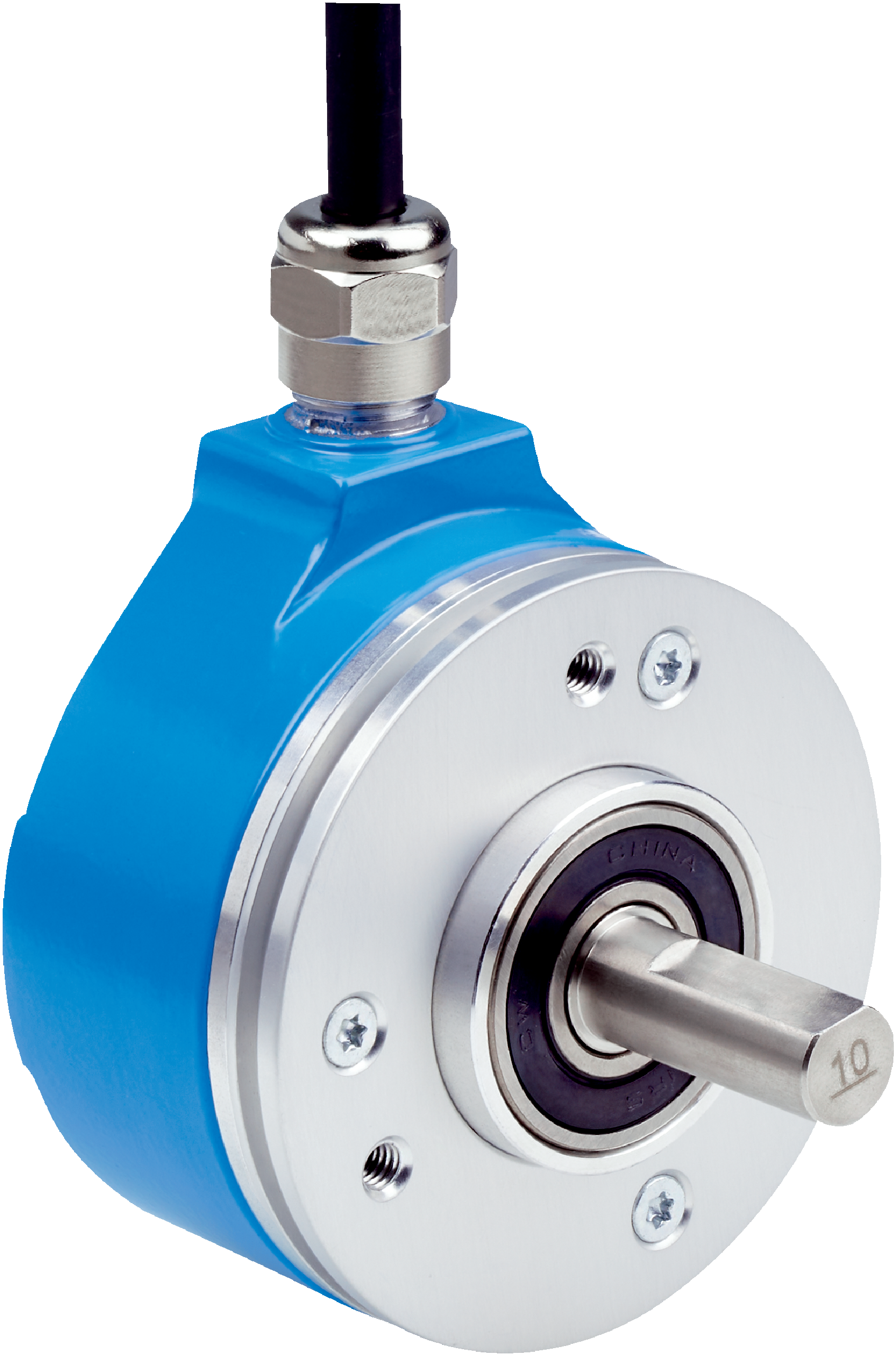

1083536 DFS25 - IP67 Motion Control Sensor, Solid shaft, Servo flange (1,000)

1083536 DFS25 - IP67 Motion Control Sensor, Solid shaft, Servo flange (1,000)

SKU1083536BrandSICK
AED 1,704.00
AED 1,704.00
Sale Sold out
Shipping calculated at checkout.

The 1083536 DFS25 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 1,000 resolution and provides a reliable open collector 1) output signal type. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 8 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
1.5 m
Series
DFS25
Pulses Per Revolution
1,000
Maximum Revolutions
≤ 9,000 min⁻¹
Output Signal Type
Open Collector 1)
Shaft Diameter
10 mmWith flat
Supply Voltage
8 ... 30 V
ParameterValue
Resolution
± 90°, electric/pulses per revolution
IP Rating
IP67
Minimum Operating Temperature
-30 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Cable, 9-wire, radial, 1.5 m
Current Rating
30 mA
Switching Frequency
150 kHz
