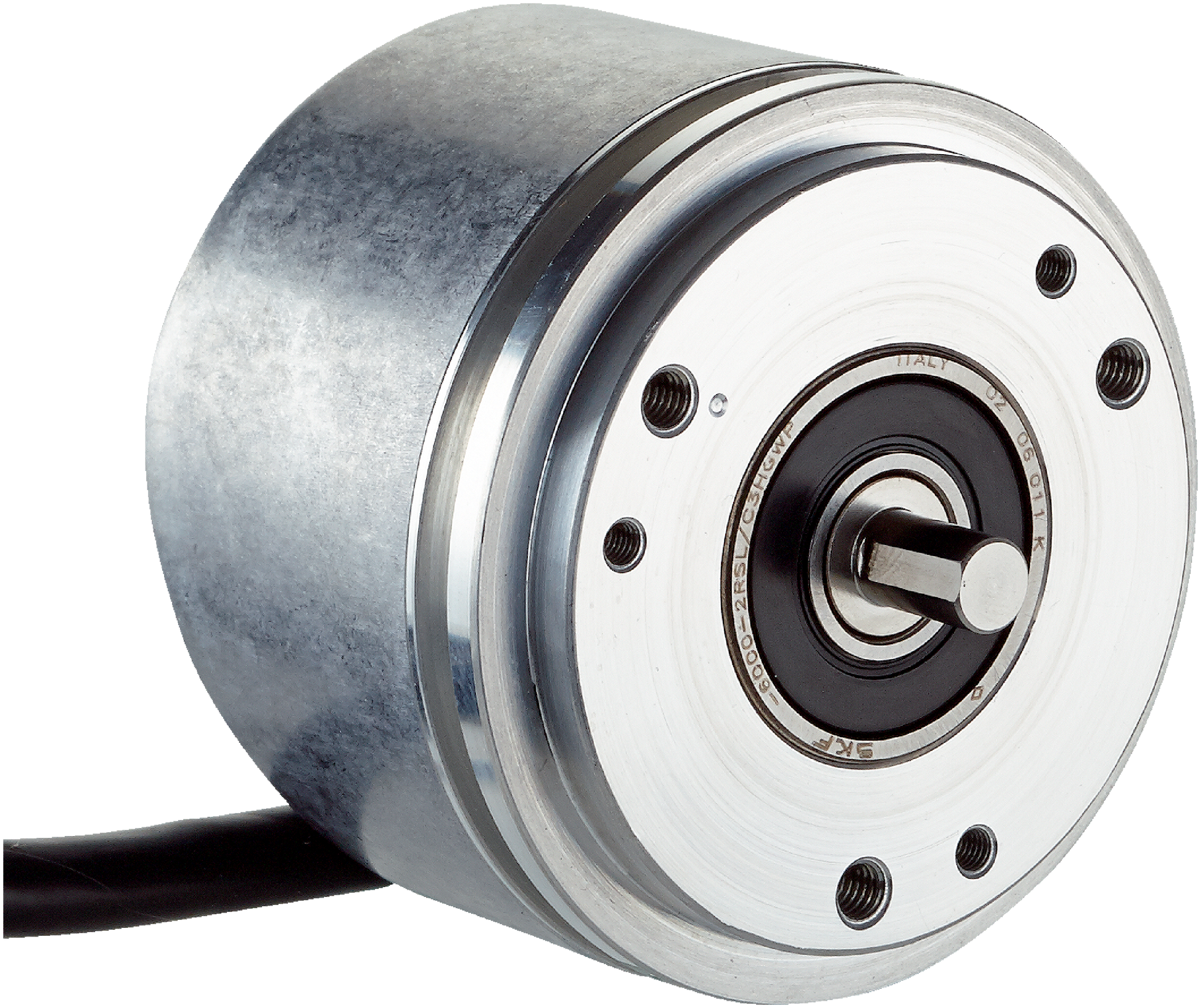

1082940 DBS60 - IP67 Motion Control Sensor, Solid shaft, Servo flange (1,000)

1082940 DBS60 - IP67 Motion Control Sensor, Solid shaft, Servo flange (1,000)

SKU1082940BrandSICK
AED 887.00
AED 887.00
Sale Sold out
Shipping calculated at checkout.

The 1082940 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 1,000 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
3 m
Series
DBS60
Pulses Per Revolution
1,000
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
HTL / Push-Pull
Shaft Diameter
6 mmWith flat
Supply Voltage
10 ... 27 V
ParameterValue
Resolution
≤ 90°, electric/pulses per revolution
IP Rating
IP67
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Cable, 8-wire, universal, 3 m 1)
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 2)
