• SICK - 1082581
1 1

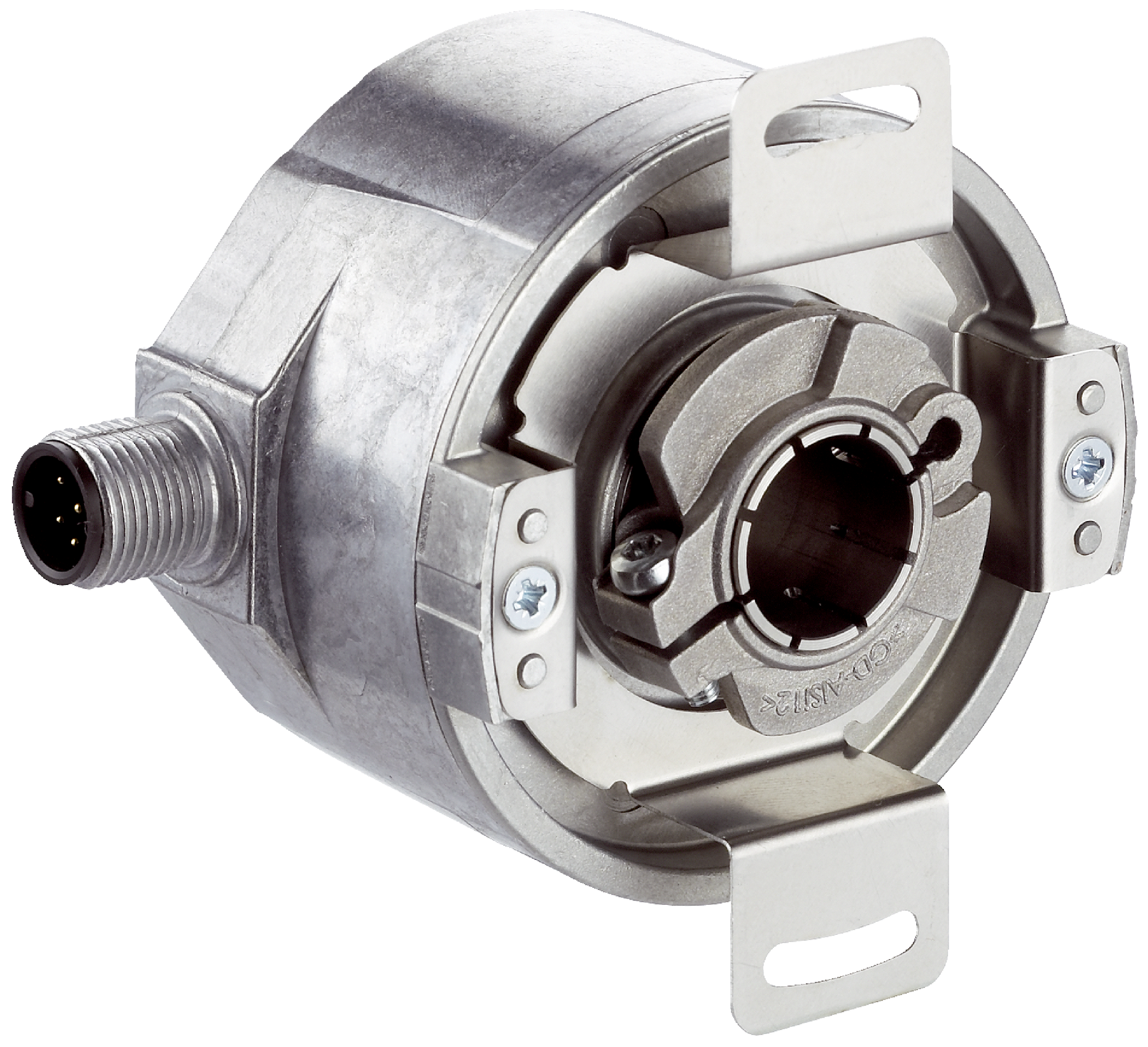

1082581 AFM60 - IP67 Motion Control Sensor, Blind hollow shaft (32,768 (15 bit))

1082581 AFM60 - IP67 Motion Control Sensor, Blind hollow shaft (32,768 (15 bit))

SKU1082581BrandSICK
AED 2,897.00
AED 2,897.00
Sale Sold out
Shipping calculated at checkout.

The 1082581 AFM60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 32,768 (15 bit) resolution and supports ≤ 6,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a blind hollow shaft and operating on a standard 4.5 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AFM60
Maximum Revolutions
≤ 6,000 min⁻¹
Shaft Diameter
12 mm
Supply Voltage
4.5 ... 32 V
Resolution
32,768 (15 bit)
ParameterValue
Steps Per Revolution
32,768 (15 bit)
IP Rating
IP67
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Blind Hollow Shaft
Connection Type
Male connector, M12, 8-pin, radial
