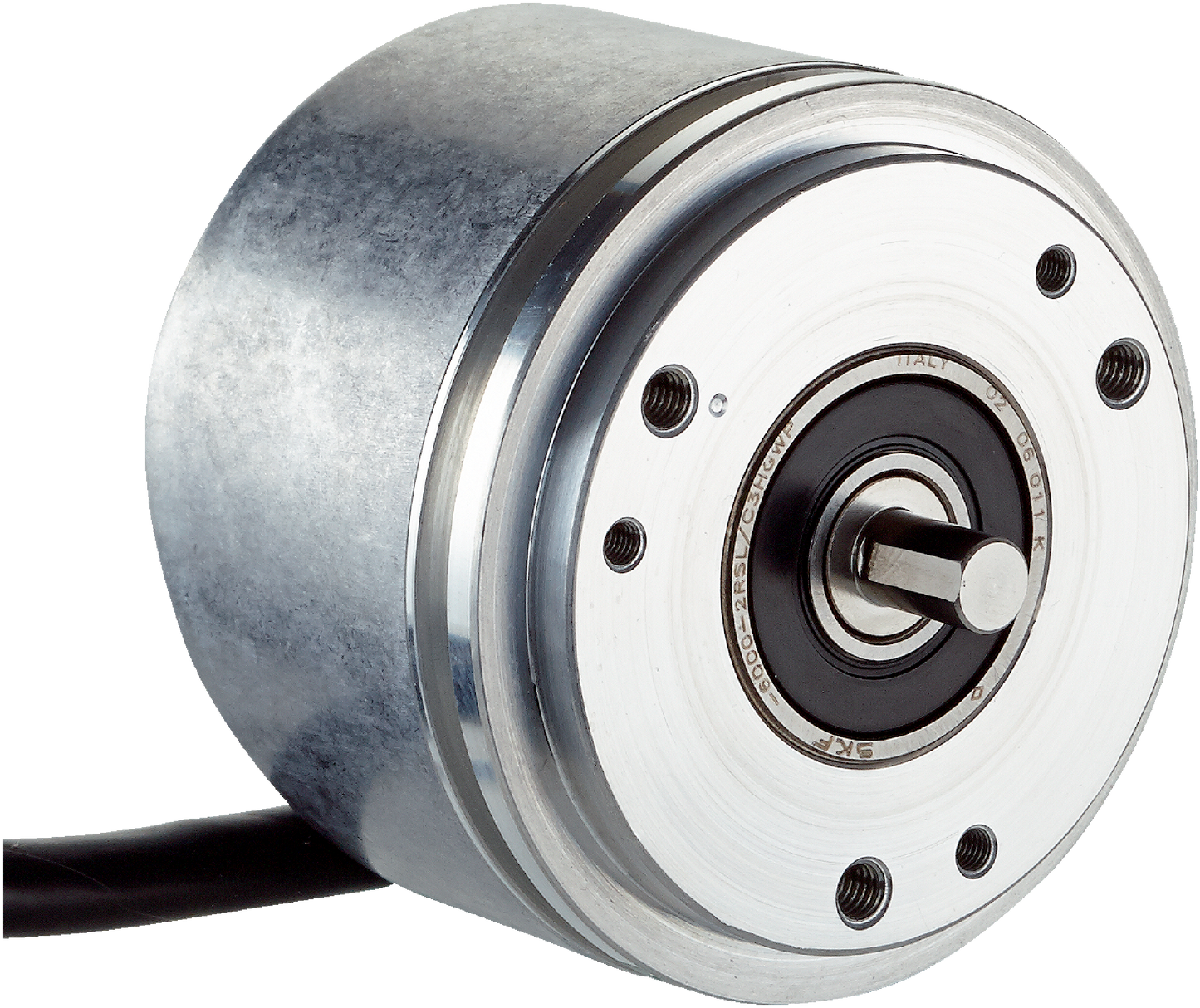

1082546 DBS60 - IP67 Motion Control Sensor, Solid shaft, Servo flange (360)

1082546 DBS60 - IP67 Motion Control Sensor, Solid shaft, Servo flange (360)

SKU1082546BrandSICK
AED 835.00
AED 835.00
Sale Sold out
Shipping calculated at checkout.

The 1082546 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 360 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
1.5 m
Series
DBS60
Pulses Per Revolution
360
Maximum Revolutions
6,000 min⁻¹
Output Signal Type
TTL / RS-422
Shaft Diameter
6 mmWith flat
Supply Voltage
4.5 ... 5.5 V
ParameterValue
Resolution
≤ 90°, electric/pulses per revolution
IP Rating
IP67
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Cable, 8-wire, universal, 1.5 m 1)
Current Rating
≤ 30 mA, per channel
Switching Frequency
+ 300 kHz 2)
