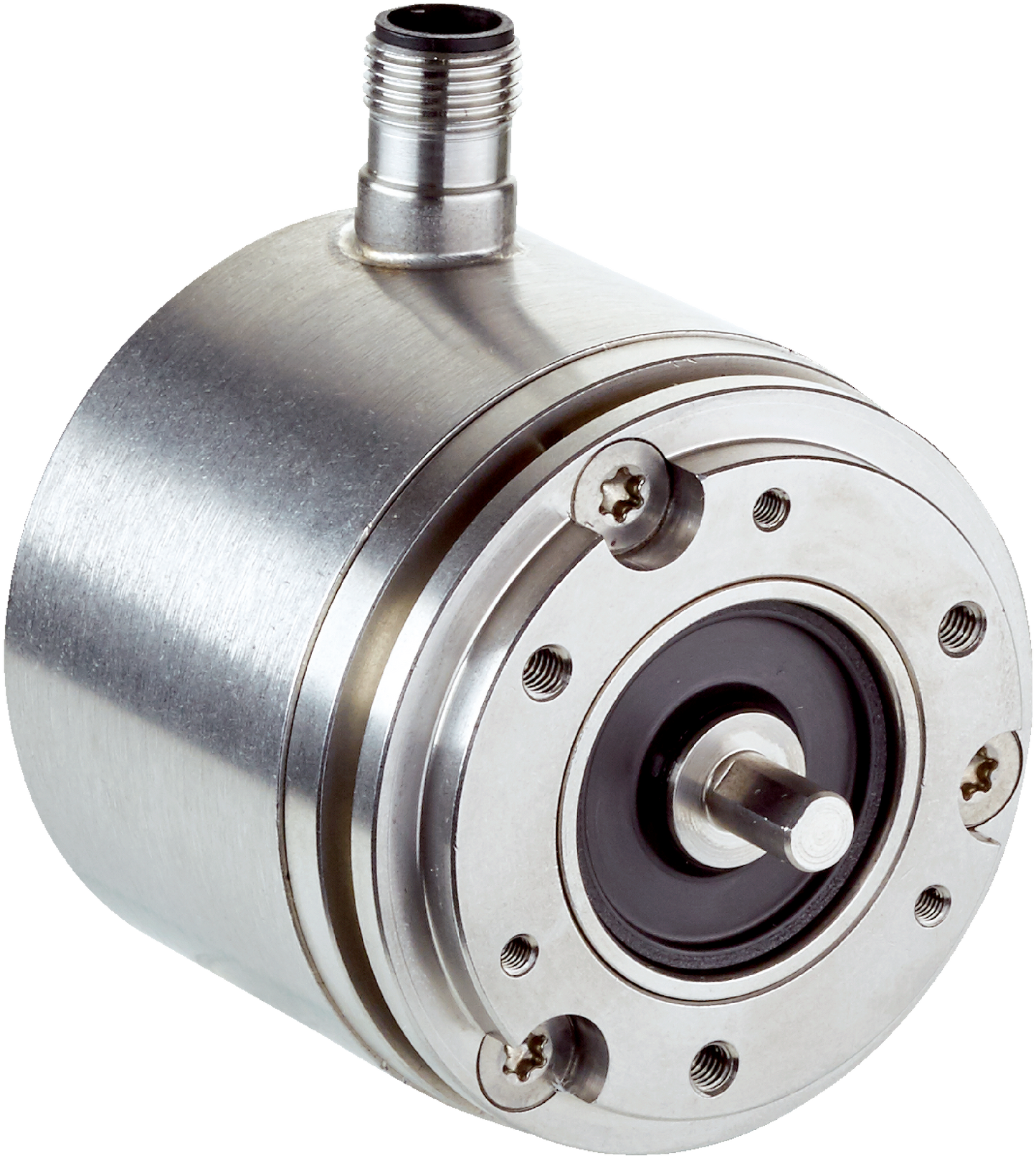

1082522 AFM60I - SSI Motion Control Sensor, Solid shaft, Servo flange (262,144 (18 bit))

1082522 AFM60I - SSI Motion Control Sensor, Solid shaft, Servo flange (262,144 (18 bit))

SKU1082522BrandSICK
AED 3,536.00
AED 3,536.00
Sale Sold out
Shipping calculated at checkout.

The 1082522 AFM60I is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a ssi interface, this sensor delivers an exact 262,144 (18 bit) resolution and supports 9,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 4.5 ... 32 v dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Series
AFM60I
Pulses Per Revolution
262,144 (18 bit)
Maximum Revolutions
9,000 min⁻¹
Shaft Type
With flat
Shaft Diameter
6 mm
Supply Voltage
4.5 ... 32 V DC
Resolution
262,144 (18 bit)
ParameterValue
Steps Per Revolution
262,144 (18 bit)
IP Rating
IP67
Interface
SSI
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+100 °C
Mounting Type
Solid Shaft, Servo Flange
Connection Type
Male connector, M12, 8-pin, radial
Switching Frequency
2 MHz
