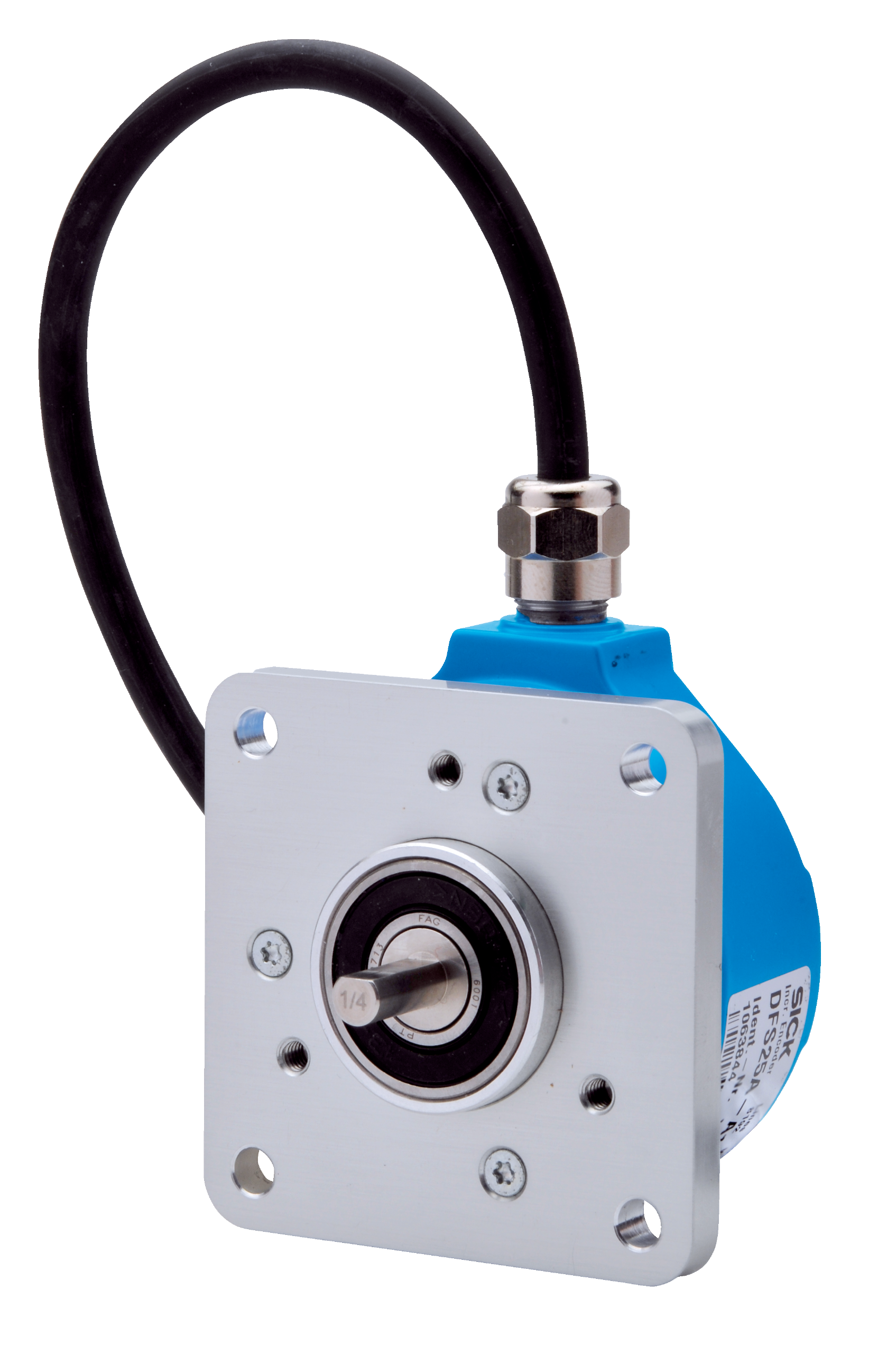

1082504 DFS2x - Incremental Motion Control Sensor, Solid shaft, Square flange (5,000)

1082504 DFS2x - Incremental Motion Control Sensor, Solid shaft, Square flange (5,000)

SKU1082504BrandSICK
AED 1,904.00
AED 1,904.00
Sale Sold out
Shipping calculated at checkout.

Available

The 1082504 DFS2x is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 5,000 resolution and provides a reliable open collector output signal type. Designed for secure and straightforward installation via a solid shaft, square flange and operating on a standard 8 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
  • Brand: Sick
  • Encoder Technology: Incremental
  • Cable Length: 1.5 m
  • Series: DFS2x
  • Pulses Per Revolution: 5,000
  • Maximum Revolutions: ≤ 9,000 min⁻¹
  • Output Signal Type: Open Collector
  • Shaft Type: Solid shaft, Square flange
  • Shaft Diameter: 10 mmWith flat
  • Supply Voltage: 8 ... 30 V
  • Resolution: ± 90°, electric/pulses per revolution
  • Steps Per Revolution: ± 90°, electric/pulses per revolution
  • IP Rating: IP67
  • Interface: Incremental
  • Overall Depth: 19 mm
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: +85 °C
  • Mounting Type: Solid Shaft, Square Flange
  • Connection Type: Cable, 9-wire, radial, 1.5 m
  • Current Rating: 30 mA
  • Switching Frequency: 150 kHz
