• SICK - 1082276
1 1

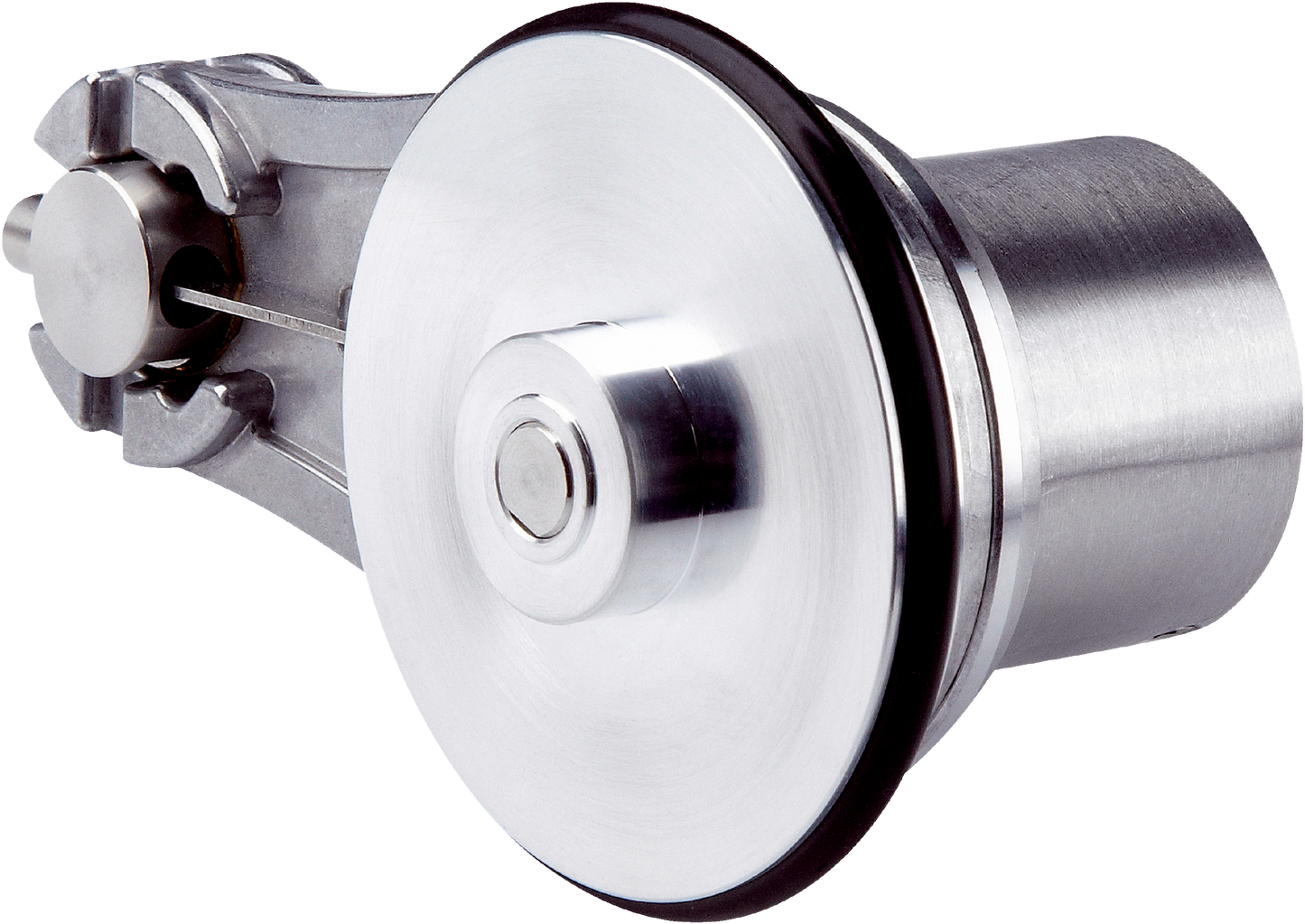

1082276 DBV50E - Incremental Motion Control Sensor, Cable, 5-wire, universal, 1.5 m 1) (20)

1082276 DBV50E - Incremental Motion Control Sensor, Cable, 5-wire, universal, 1.5 m 1) (20)

SKU1082276BrandSICK
AED 755.00
AED 755.00
Sale Sold out
Shipping calculated at checkout.

The 1082276 DBV50E is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring an incremental interface, this sensor delivers an exact 20 resolution and provides a reliable htl / push pull output signal type. Equipped with a cable, 5-wire, universal, 1.5 m 1) connection and operating on a standard 7 v ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
1.5 m
Series
DBV50E
Pulses Per Revolution
20
Output Signal Type
HTL / Push-Pull
Supply Voltage
7 ... 27 V
Resolution
0.01
ParameterValue
IP Rating
IP65
Interface
Incremental
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+70 °C
Connection Type
Cable, 5-wire, universal, 1.5 m 1)
Current Rating
30 mA
Switching Frequency
≤ 300 kHz
