• Texas-instruments - SN7432N
1 1

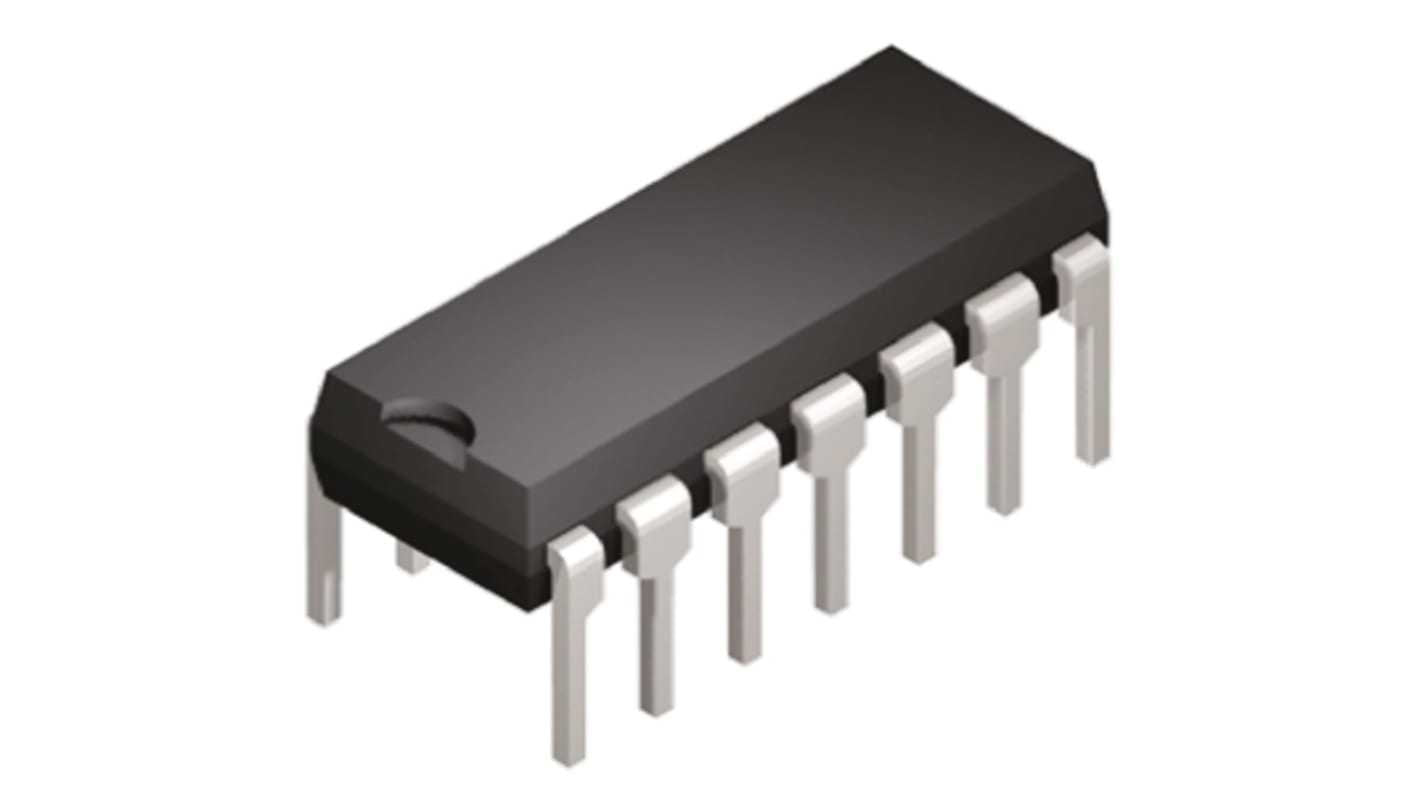

Texas-instruments Logic Gates SN7432N

Texas-instruments Logic Gates SN7432N

SKUSN7432NBrandTexas-instruments
AED 6.59
AED 6.59
Sale Sold out
Shipping calculated at checkout.

Texas-instruments, 4-ch, 2-input, 4.75-V to 5.25-V bipolar OR gates

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Texas Instruments
  • Logic Function: OR
  • Mounting Type: Through Hole
  • Number Of Elements: 4
  • Number of Inputs per Gate: 2
  • Schmitt Trigger Input: No
  • Package Type: PDIP
  • Pin Count: 14
  • Logic Family: 74
  • Maximum Operating Supply Voltage: 5.25 V
  • Maximum High Level Output Current: -0.8mA
  • Maximum Propagation Delay Time @ Maximum CL: 22 ns @ 5 V
  • Minimum Operating Supply Voltage: 4.75 V
  • Maximum Low Level Output Current: 16mA
  • Length: 19.3mm
  • Height: 4.57mm
  • Width: 6.35mm
  • Dimensions: 19.3 x 6.35 x 4.57mm
  • Propagation Delay Test Condition: 15pF
  • Minimum Operating Temperature: 0 °C
  • Maximum Operating Temperature: +70 °C
