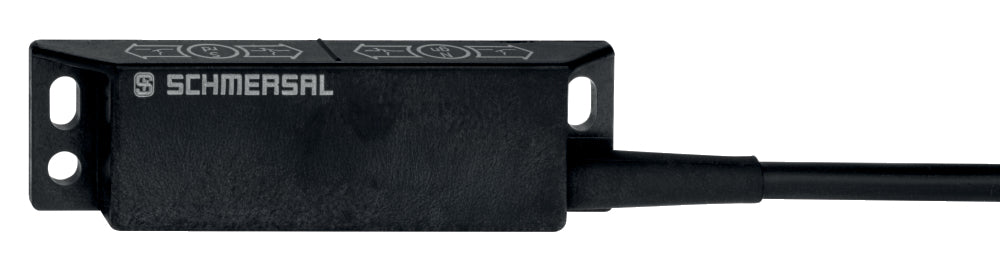

BN 310-2RZ-2486 - 2 Reed contacts Non-Contact Safety Switch, Thermoplastic enclosure Housing with Connecting cable with M12 connector, straight, 4-pole

Name: BN 310-2RZ-2486 - 2 Reed contacts Non-Contact Safety Switch, Thermoplastic enclosure Housing with Connecting cable with M12 connector, straight, 4-pole
Brand: Schmersal
SKU: BN 310-2RZ-2486
Price: 370.00 AED
Availability: InStock

SKUBN 310-2RZ-2486BrandSchmersal

AED 370.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BN 310-2RZ-2486 is a highly reliable 2 reed contacts non-contact safety switch engineered for secure, wear-free access control on industrial machine guards and doors. Enclosed in a rugged Thermoplastic enclosure housing, this switch utilizes a Magnet actuator to prevent tampering. Equipped with a pre-wired Connecting cable with M12 connector, straight, 4-pole connection, it delivers dependable safety circuit integration.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist

Brand: Schmersal
Housing Material: Thermoplastic Enclosure
Connection Type: Connecting Cable With M12 Connector, Straight, 4-Pole
Switch Type: 2 Reed Contacts
Actuator Type: Magnet
Sensor Principle: Non-contact principle

Series: BN 310-2RZ-2486
Range: Actuating distance up to 60 mm depending on actuating magnet and version
IP Rating: IP67
Depth: 25 mm
Length: 13 mm
Width: 88 mm
