• Te-connectivity - 8-321045-1
1 1

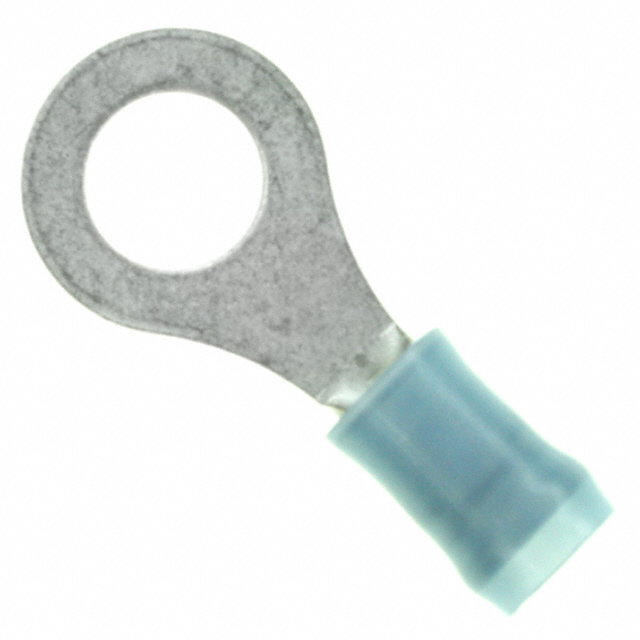

Te-connectivity Ring Terminals 8-321045-1

Te-connectivity Ring Terminals 8-321045-1

SKU8-321045-1BrandTe-connectivity
AED 255.78
AED 255.78
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity Insulated loop terminal, M6 pin, max wire dimens. 2.6mm , 14AWG, Blue Alias: AMPS-8-0321045-1, C21330-000 TERMINAL,PIDG R 16-14 1/4

View full details
  • Brand: TE Connectivity
  • Series: PIDG
  • Insulation: Insulated
  • Insulation Material: Nylon
  • Inner Ring Diameter: 6.73mm
  • Outer Ring Diameter: 11.91mm
  • Minimum Wire Size mm²: 1mm²
  • Maximum Wire Size mm²: 2.6mm²
  • Minimum Wire Size AWG: 16AWG
  • Maximum Wire Size AWG: 14AWG
  • Stud Size: M6
  • Colour: Blue
  • Contact Plating: Tin
  • Contact Material: Copper
  • Thickness: 0.79mm
  • Overall Length: 27.38mm
  • Country of Origin: United States
