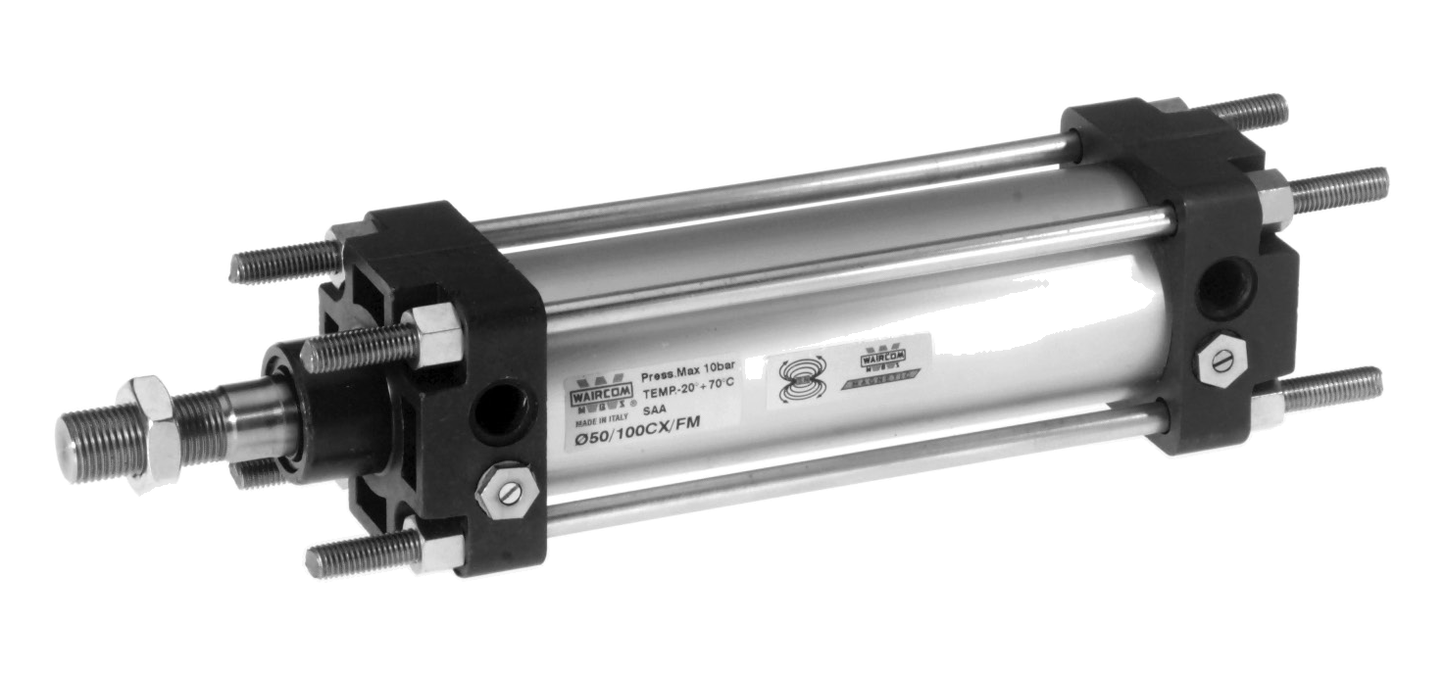

Waircom 32/100 CXL/FM - Series CXL Double Acting, Cushioned Cylinder (32mm Bore x 100mm Stroke)

Waircom 32/100 CXL/FM - Series CXL Double Acting, Cushioned Cylinder (32mm Bore x 100mm Stroke)

SKU32/100 CXL/FMBrandWaircom
AED 444.00
AED 444.00
Sale Sold out
Shipping calculated at checkout.

The Waircom 32/100 CXL/FM is an industrial double acting, cushioned cylinder belonging to the Series CXL line. Built for demanding automation environments, this pneumatic actuator relies on a 32mm bore and a compact 100mm stroke to deliver reliable linear motion. It features built-in adjustable front + rear decelerators to manage end-of-stroke impact smoothly. Structural construction consists of an anodized aluminium alloy (extruded tube) barrel paired with a c45 chromium-plated steel piston rod. Standard mechanical connections include a G 1/8 port configuration and an M10 piston rod thread, fully meeting AFNOR NF E49-001 (ex CNOMO) standard specifications.

View full details
ParameterValue
Brand
Waircom
Series
Series CXL
Cylinder Type
Double Acting, Cushioned
Bore Size
32 mm
Stroke
100 mm
Piston Type
Magnetic
ParameterValue
Cushioning
Adjustable front + rear decelerators
Barrel Material
Anodized aluminium alloy (extruded tube)
Piston Rod Material
C45 chromium-plated steel
Piston Rod Thread
M10
Port Size
G 1/8
Standards Met
AFNOR NF E49-001 (ex CNOMO)
