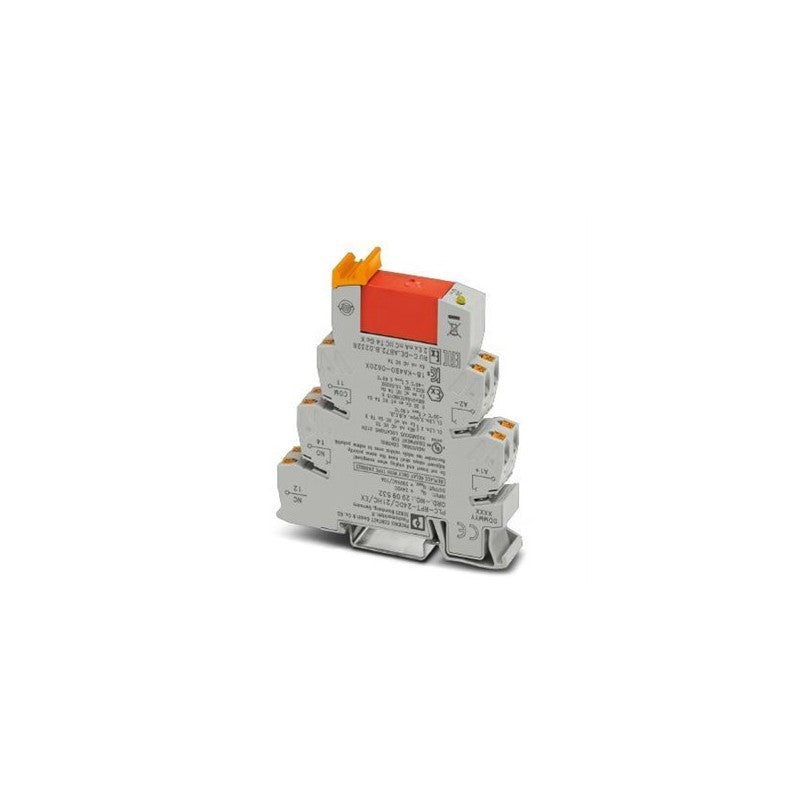

Phoenix-contact Electromechanical Interface Relays 2909532

AED 78.30

Sale Sold out

Shipping calculated at checkout.

Quantity

Phoenix-contact, PLC-INTERFACE, consisting of DIN-rail-mountable basic terminal block in 14 mm with Push-in connection and plug-in relay with 10 A power contact, 1 changeover contact, 24 V DC input voltage. Approved according to ATEX/IECEx (Zone 2) and Ex Zone Class I, Div. 2.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist

Brand: Phoenix Contact
Coil Voltage: 24V dc
Contact Configuration: SPDT
Mounting Type: DIN Rail
Series: PLC-RPT-24DC/21HC/EX
Number of Poles: 1
Minimum Input Voltage: 24V dc
Maximum Input Voltage: 24V dc
Terminal Type: Push In
Switching Voltage: 250V ac/dc
Depth: 94mm
Height: 80mm

Length: 14mm
Contact Material: Silver Alloy
Input Current: 18mA
Life: 3 x 10^7 (Mechanical) cycles
Operating Temperature Range: -20 ? +60 °C, -40 ? +60°C
Dimensions: 14 x 94 x 80mm
Relay Switching Classification: Interface Relay Module
Standards Met: CE Compliant, EN 50178, EN 60079-0, -7, -15, IEC 60664, UL Listed, USA Certified
Special Features: IP20 Relay Base, Reinforced Insulation, Safe Isolation
Minimum Operating Temperature: -40 °C, -20°C
Maximum Operating Temperature: +60°C
Country of Origin: Germany
