- Brand
- Waircom
- Series
- Series C
- Function
- 3/2 N.C.
- Interface / Body Style
- CNOMO interface 30 mm side (ISO 15218)
- Manual Override
- Monostable push button
- Flow Rate
- 36 Nl/min (ΔP=1 bar @6 bar)
- Body Material
- Acetal resin
ParameterValue
- Barrel Material
- Brass
- Sleeve Material
- Brass
- Seals
- Viton®
- Operating Pressure
- 0-10 bar
- Operating Temperature
- 0 ÷ +50 °C (-20 °C with dry air)
- Sleeve Diameter
- Ø 9 mm
ParameterValue
Being a UAE company, our UAE shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
More in Waircom CNOMO
View all 4

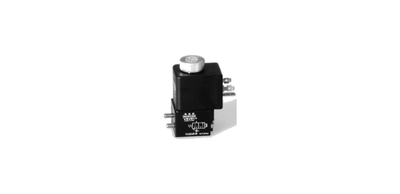

WaircomC/UEASVBWaircom C/UEASVB - Series C Pneumatic Valve, 3/2 N.O. (CNOMO interface (ISO 15218))
