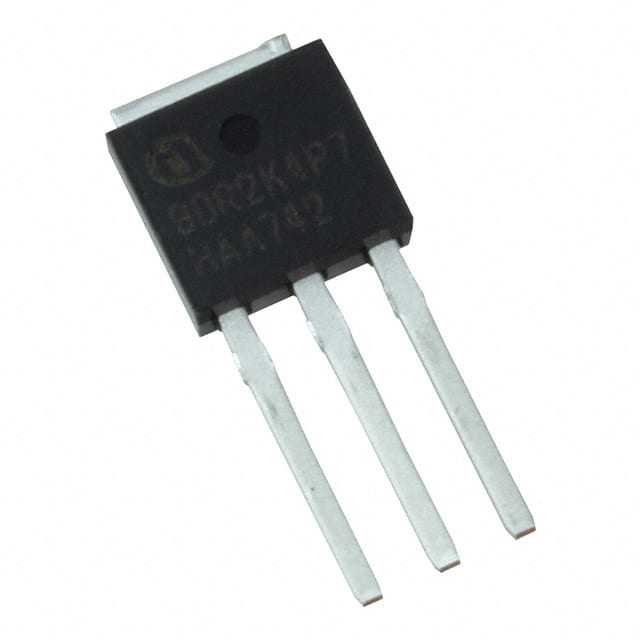

Infineon MOSFETs IPSA70R450P7SAKMA1

Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is IPSA70R450P7SAKMA1. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 3.5v @ 120 µa. The product has -40 °c ~ 150 °c (tj) operating temperature range. Moreover, the product comes in to-251-3 short leads, ipak, to-251aa. It has a maximum Rds On and voltage of 450mohm @ 2.3a, 10v. The maximum gate charge and given voltages include 13.1 nc @ 400 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tube package . The product has a 700 v drain to source voltage. The maximum Vgs rate is ±16v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 50w (tc). The products input capacitance at maximum includes 424 pf @ 400 v. The product is available in through hole configuration. The product coolmos p7, is a highly preferred choice for users. pg-to251-3 is the supplier device package value. The continuous current drain at 25 °C is 10a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ipsa70, a base product number of the product. The product is designated with the ear99 code number.
