• Te-connectivity - 5530843-3
1 1

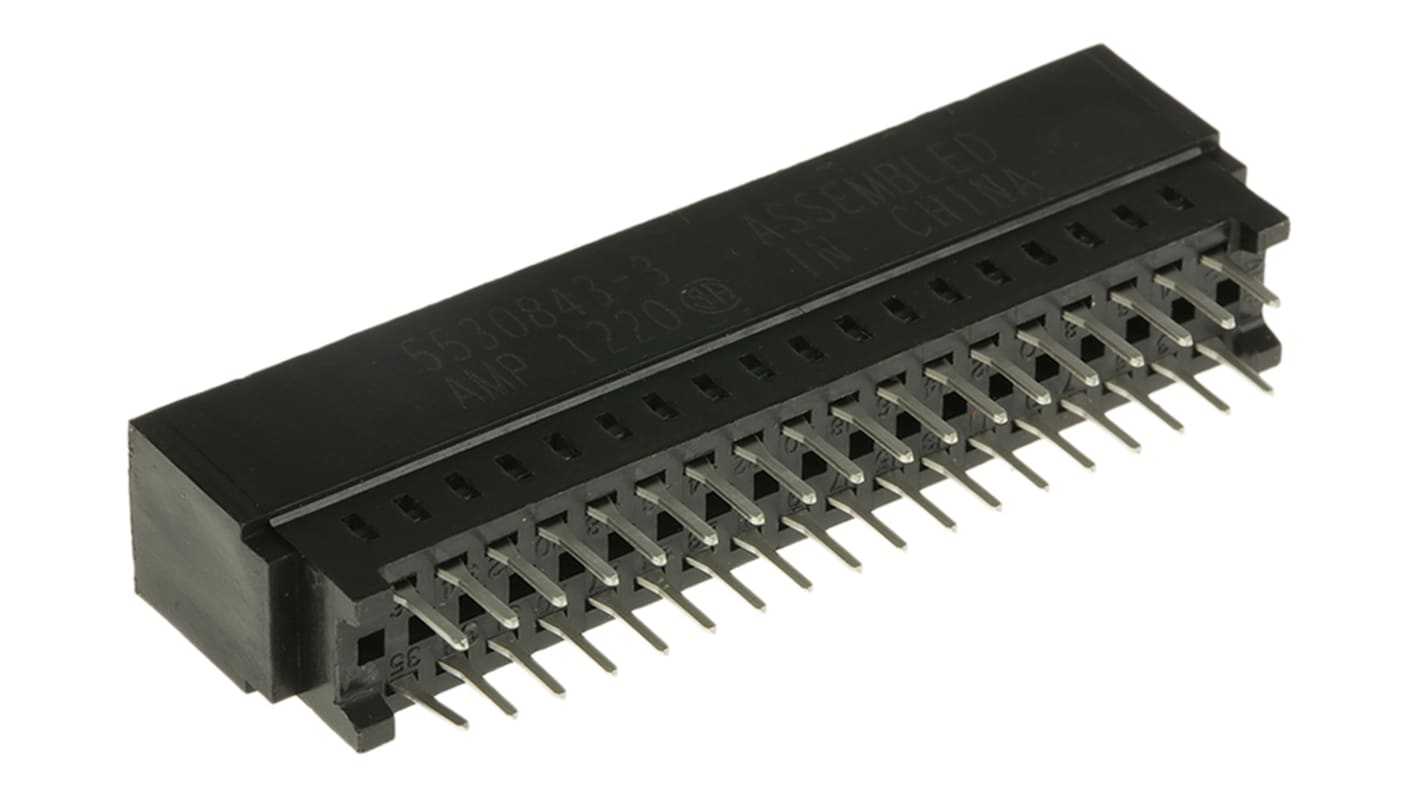

Te-connectivity Edge Connectors 5530843-3

Te-connectivity Edge Connectors 5530843-3

SKU5530843-3BrandTe-connectivity
AED 11.62
AED 11.62
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Card Edge Power Connectors, Board-to-Board, 36 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 36 Power Positions, 0 Signal Positions Alias: CONN SEC II 18 POS 100C/L

View full details
  • Brand: TE Connectivity
  • Body Orientation: Straight
  • Gender: Female
  • Number Of Contacts: 36
  • Number Of Rows: 2
  • Pitch: 2.54mm
  • Mounting Type: Through Hole
  • Termination Method: Solder
  • Contact Plating: Gold over Nickel
  • Contact Material: Phosphor Bronze
  • Current Rating: 3A
  • Voltage Rating: 1 kV ac
  • Housing Material: PET
  • Series: Standard Edge II
  • Depth: 9.35mm
  • Card Type: Dual Edge
  • Length: 49.78mm
  • Width: 15.49mm
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: +85°C
